(88.100.60[05]) - DIA KIT, DRUM REINFORCEMENT

Запчасти Case IH 5088 (88.100.60[05]) - DIA KIT, DRUM REINFORCEMENT (88) - ACCESSORIES

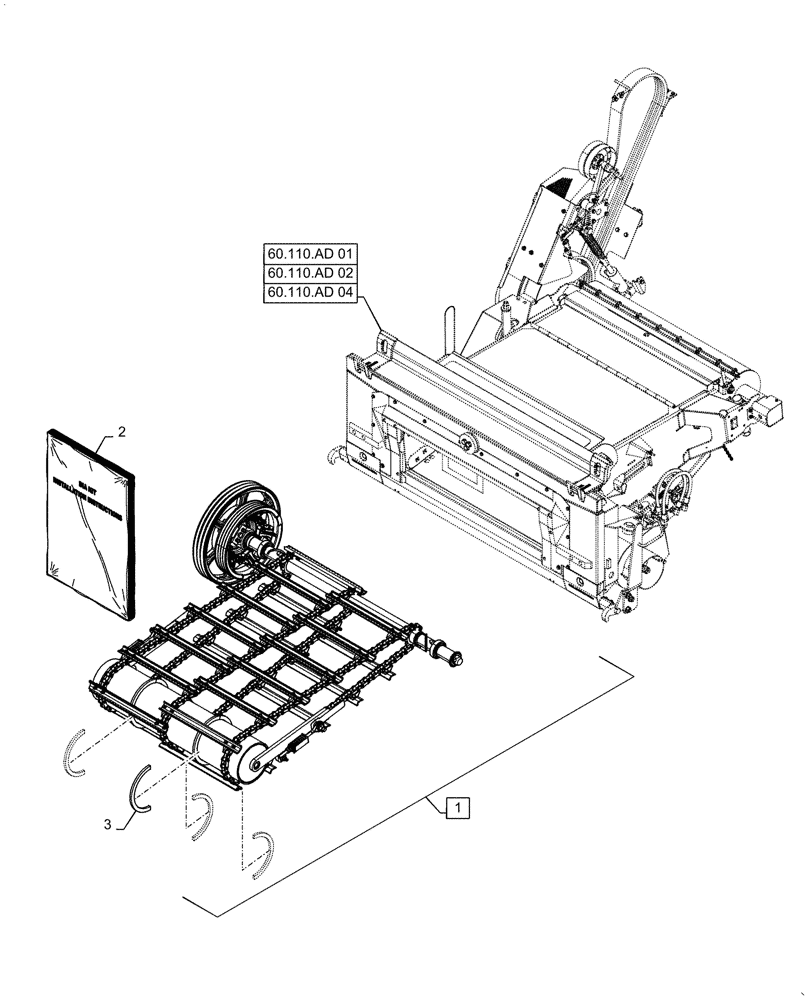

Схема запчастей Case IH 5088 - (88.100.60[05]) - DIA KIT, DRUM REINFORCEMENT (88) - ACCESSORIES
60.110.ad 01
1
3
2
60.110.ad 04
60.110.ad 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84230830

DIA KIT, HARVESTER

Drum Reinforcement, Incl 2 - 3

1шт.

2

84230825

INSTRUCTION

Sheet

1шт.

3

84229466

REINFORCEMENT

Feeder Drum

4шт.

Выбрано товаров: 3
