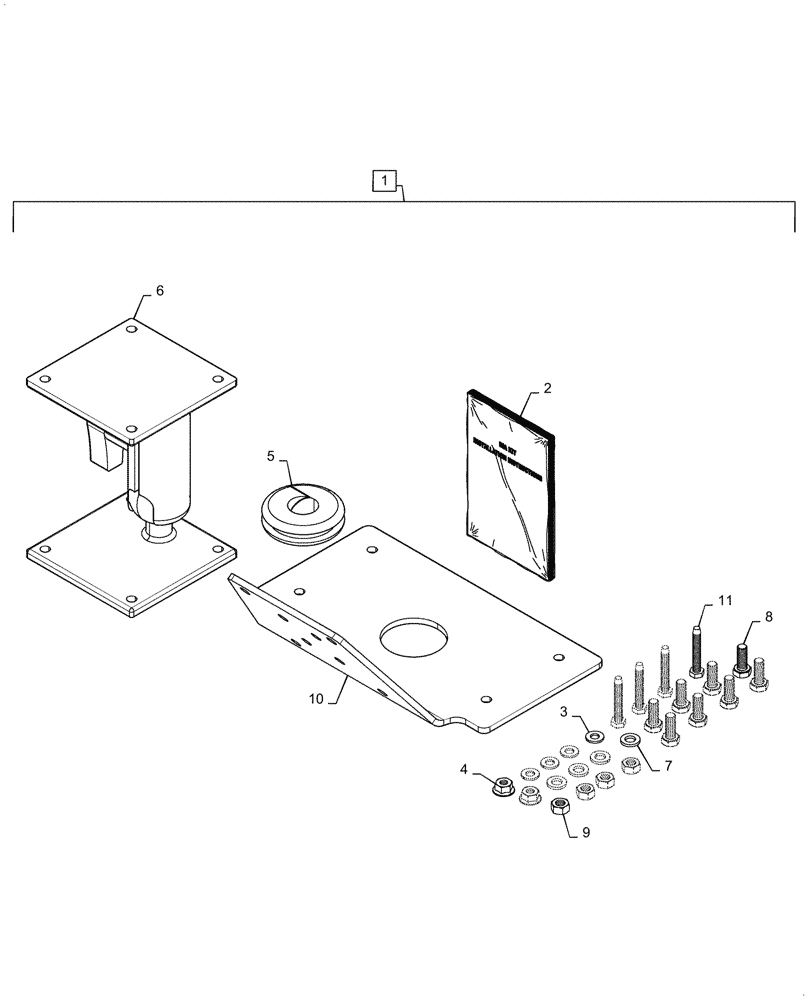

Запчасти Case IH 5088 (88.100.55[09]) - DIA KIT, TOUCHSCREEN DISPLAY INSTALLATION (88) - ACCESSORIES

1

87719252

DIA KIT, HARVESTER

Touchscreen Instal, Incl 2 - 11

1шт.

2

87756333

INSTRUCTION

Sheet

1шт.

3

195-81029

WASHER,#10

4шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

5

87330628

GROMMET

Rubber, Split

1шт.

6

87645133

BRACKET

Touchscreen Short Arm Mount

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

10

87621924

BRACKET

Display Mounting Plate

1шт.

11

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.
