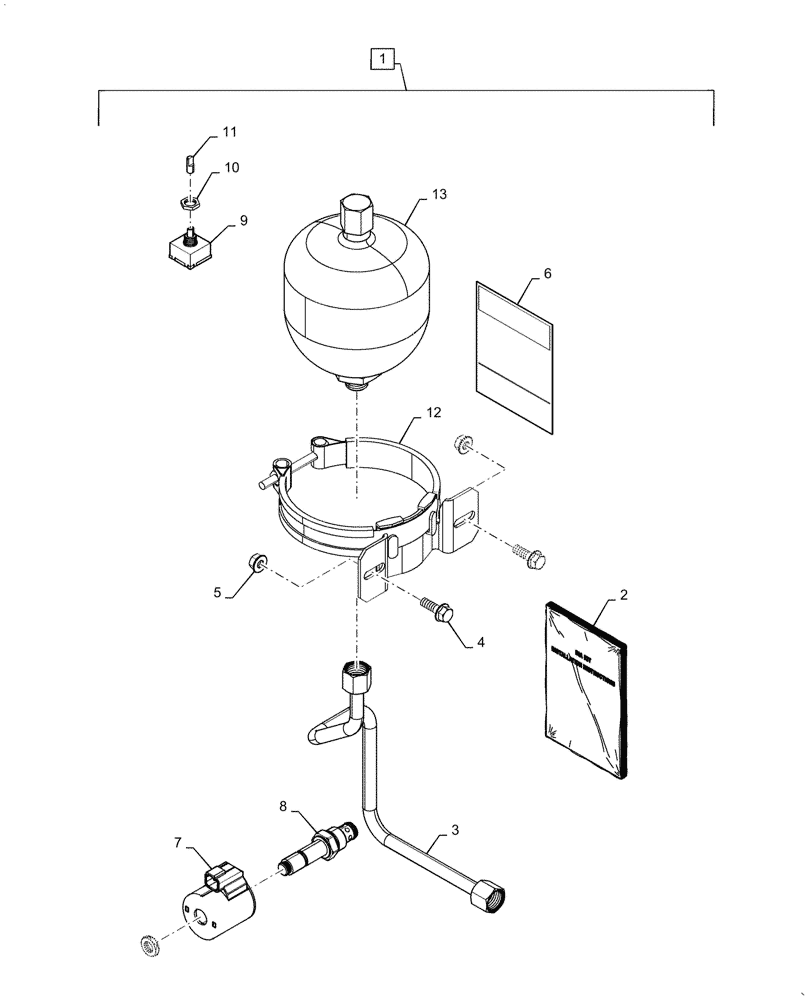

Запчасти Case IH 5088 (88.100.35[01]) - DIA KIT, ACCUMULATOR (88) - ACCESSORIES

1

84237965

DIA KIT, HARVESTER

Ride Control Accumulator, Incl 2 - 13

1шт.

2

84237969

INSTRUCTION

Sheet

1шт.

3

87701839

TUBE,0.5"OD

Accumulator

1шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

6

344945A1

WARNING DECAL

Pressurized Vessel

1шт.

7

87582525

COIL

Valve

1шт.

8

431547A1

VALVE

Solenoid Cartridge

1шт.

9

L70872

SWITCH

Wiper

1шт.

10

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

11

280673A1

KNOB

Accumulator Switch

1шт.

12

84133868

CLAMP

Accumulator Mounting

1шт.

13

87105673

ACCUMULATOR

Service

1шт.
