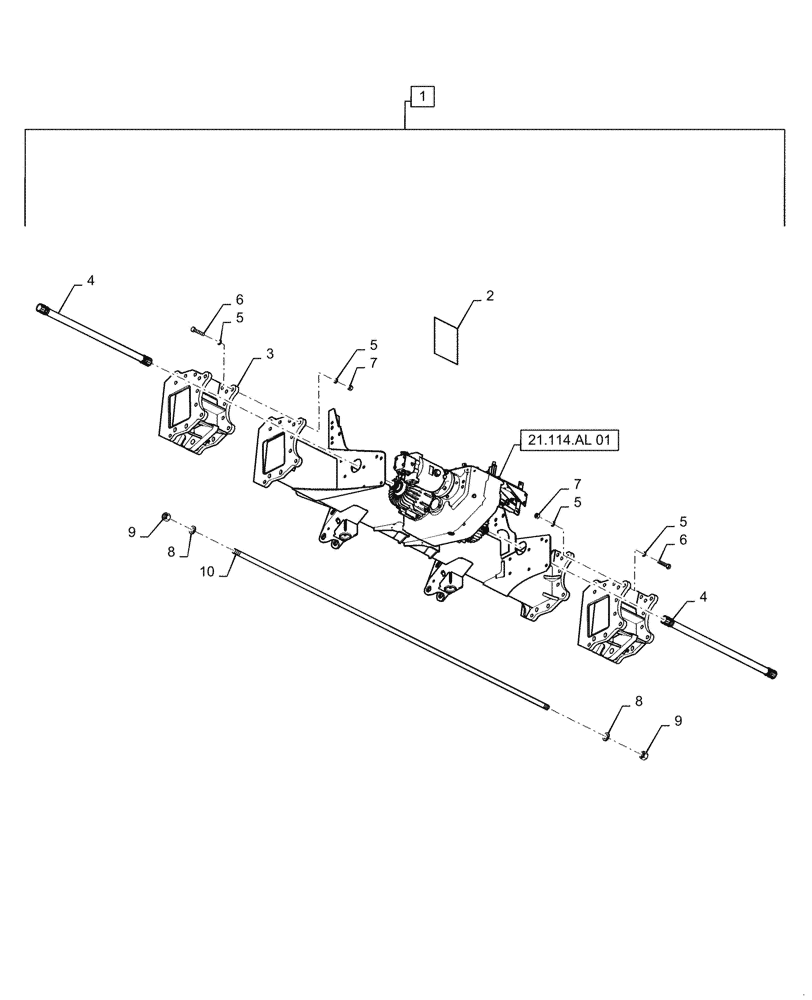

Запчасти Case IH 5088 (88.100.25[01]) - DIA KIT, AXLE EXTENSION (88) - ACCESSORIES

1

87390908

DIA KIT, HARVESTER

Axle Extensions, 12", Incl 2 - 10

1шт.

2

84158969

SERVICE MANUAL

Axle Extensions, 12"

1шт.

3

87676677

EXTENSION

Axle Assy, 12"

2шт.

4

87638961

SHAFT

Final Drive

2шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

Final Drive, 33.5mm OD x 21.3mm ID x 4mm W

52шт.

6

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

26шт.

7

832-41320

NUT,M20 x 2.5, Cl 10

26шт.

8

87542957

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

56mm OD x 33mm ID x 5mm W

2шт.

9

86016798

LOCK NUT,1 1/4"-12, GC

2шт.

10

87708035

ROD

Axle Extension, 12", 2986.5mm OAL Or 117.5" OAL

1шт.
