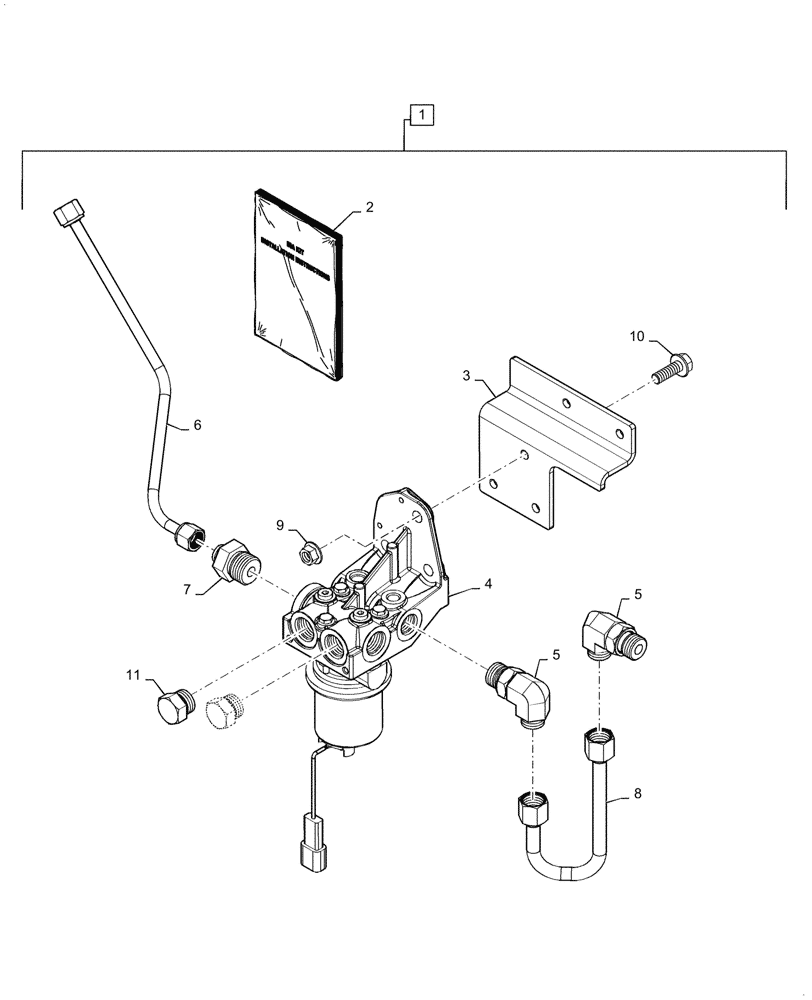

Запчасти Case IH 5088 (88.100.10[05]) - DIA KIT, FUEL PUMP (88) - ACCESSORIES

1

48071439

Fuel Pump, Incl 2 - 11

KIT

1шт.

2

48072249

Fuel Pump Install

INSTRUCTION

1шт.

3

48064001

Fuel Pump

BRACKET

1шт.

4

87676818

FUEL PUMP,12V, 4.5A

1шт.

5

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

2шт.

6

48071437

Fuel Supply

TUBE

1шт.

7

47539754

HYD CONNECTOR

ORFS

1шт.

8

48071438

Fuel Filter to Pump

TUBE

1шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

3шт.

11

86512512

PLUG,7/8" - 14 ORB

2шт.
