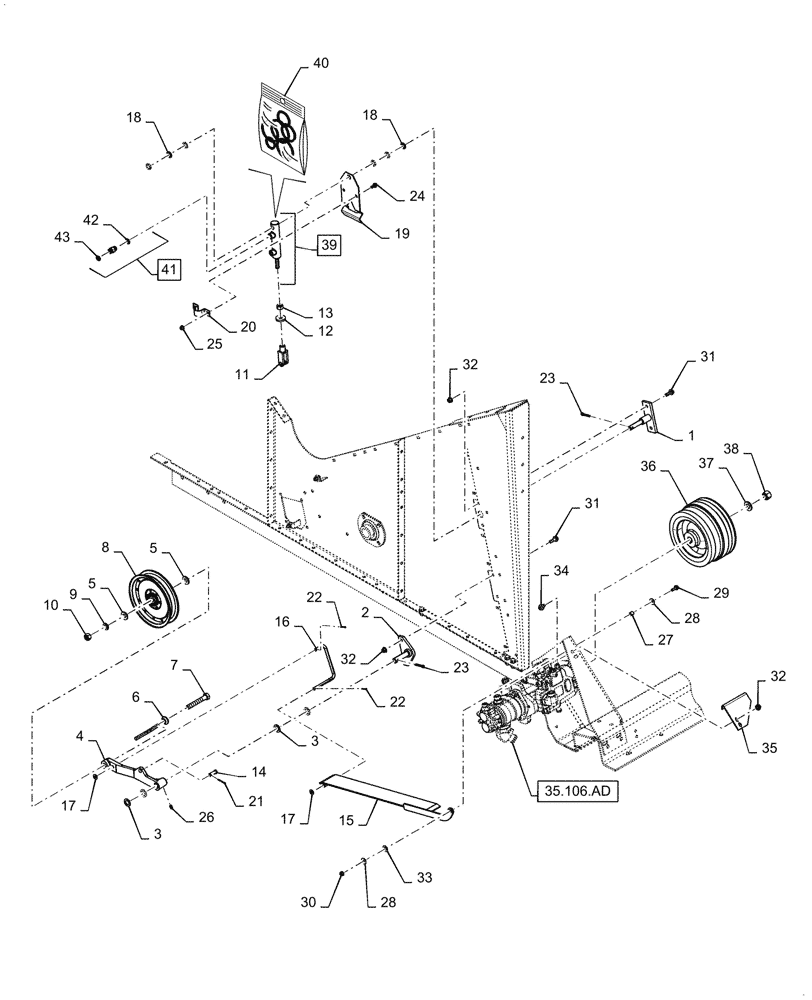

Запчасти Case IH 5088 (80.175.AG[02]) - UNLOADER DRIVER, PULLEY & TENSIONER (80) - CROP STORAGE/UNLOADING

1

87555297

ASSEMBLY

Idler Cylinder Shaft

1шт.

2

87555294

SHAFT ASSY.

Idler Arm

1шт.

3

495-81039

WASHER,25/32" x 1 1/4" x .120"

4шт.

4

112008A1

ARM

Idler

1шт.

5

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

6

194894C1

ROD

Belt Upper

1шт.

7

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

8

177195C1

PULLEY ASSY.

Idler

1шт.

9

492-11062

BEARING WASHER,5/8"

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

12

189153A1

WASHER

Clutch Retainer

1шт.

13

425-118

NUT,1/2"-20, G5

1шт.

14

427-8136

CLEVIS PIN,1/2" x 1.360"

1шт.

15

87555302

SUPPORT ASSY.

Drive Belt

1шт.

16

87555310

ROD

Belt Upper Retainer

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

18

495-81175

WASHER,21/32" x 1" x .120"

6шт.

19

175611A2

HOLDER

Idler Arm, Serial Range: -Y9G002601

1шт.

19

84172259

RETAINER

Idler Arm, Start Serial: Y9G002601

1шт.

20

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

Retaining Plate, Serial Range: -Y9G002601

1шт.

20

84226332

CLAMP

Retaining Plate, Start Serial: Y9G002601

1шт.

21

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

22

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

23

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

24

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

26

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

27

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

28

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

29

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

30

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

31

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

32

86050279

FLANGE NUT,M10 x 1.5, Cl 10

11шт.

33

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

1шт.

34

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

35

87555312

RETAINER

Drive Belt

1шт.

36

87565840

PULLEY

Aux Pump Drive

1шт.

37

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

38

231-46112

LOCK NUT,3/4"-16, GB

1шт.

39

87337243

CYLINDER,Double Acting, 12.7mm Rod, 69.85mm Stroke

Incl 41 - 43

1шт.

40

87364305

SEAL KIT

Clutch Cylinder

1шт.

41

327679A1

CHECK VALVE

Cylinder, Incl 42, 43

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
