Запчасти Case IH 5088 (80.150.BG[03]) - GRAIN BIN EXTENSION, 300 BU (80) - CROP STORAGE/UNLOADING

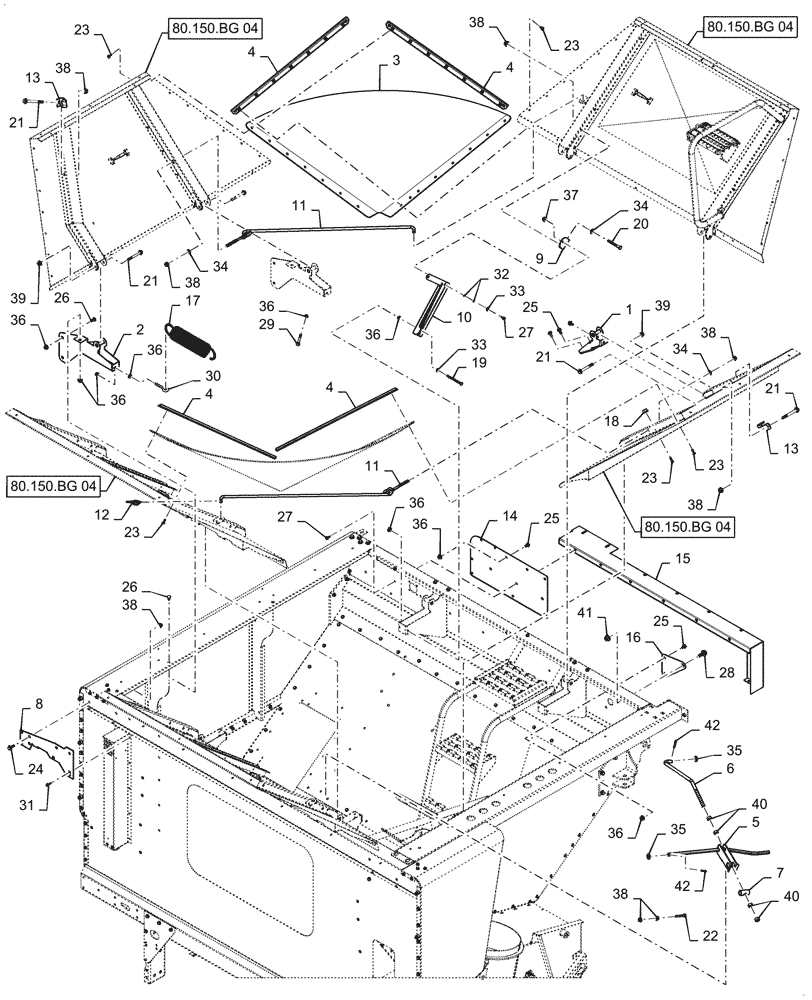

Схема запчастей Case IH 5088 - (80.150.BG[03]) - GRAIN BIN EXTENSION, 300 BU (80) - CROP STORAGE/UNLOADING
6
36
27
36
18
23
11
34
27
1
38
39
7
33
13
40
14
23
36
10
36
4
42
31
41
20
17
4
23
38
16
21
36
40
22
3
34
38
24
21
35
26
28
37
25
38
8
39
13
5
15
30
29
38
23
36
23
33
19
21
25
38
9
25
2
12
32
35
21
4
34
42
36
4
26
36
80.150.bg 04
80.150.bg 04
80.150.bg 04
80.150.bg 04
11
38

Артикул

Название

Примечание

Количество

1

87606500

HINGE

LH

2шт.

2

87474228

HINGE

RH

2шт.

3

87726836

CANVAS,938.3mm W x 1345.5mm L

Extension Corner, 32"

4шт.

4

87735041

ANGLE

32" Extension

8шт.

5

87571909

ASSEMBLY

Handle Latch, Bubbler

1шт.

6

87656571

ROD

Latch, Bubbler Auger

1шт.

7

87571967

BUSHING

Bubbler Auger Latch

1шт.

8

84555626

PLATE

Tank Support, Front, RH

1шт.

9

87107781

BRACKET

Latch

1шт.

10

87608564

BRACKET

Latch, Extension Panel

1шт.

11

87553944

ROD

Prop Rod, Extension

2шт.

12

87106279

PIN,6.4mm OD

Klik

2шт.

13

86976901

CLIP

Prop Rod

2шт.

14

87603123

SUPPORT

Plate, Tank

1шт.

15

87649428

COVER ASSY

Access, No Actuator

1шт.

16

87614100

COVER

Tank Extension, Rear, LH

1шт.

17

86975571

SPRING,Extension, 72.4mm OD x 356mm L

1шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

19

120117

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8, Full Thd

1шт.

20

86508622

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

1шт.

21

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

10шт.

22

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

23

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

66шт.

24

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

8шт.

25

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

13шт.

26

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

6шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

28

86978772

FLANGE BOLT,Hex, M16 x 40mm, Cl 10.9, Full Thd

1шт.

29

87698841

BOLT,Hex, M10 x 70mm, Cl 10.9

1шт.

30

86599359

EYEBOLT

M10

1шт.

31

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

10шт.

32

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

33

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

34

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

35

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

36

86050279

FLANGE NUT,M10 x 1.5, Cl 10

28шт.

37

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

38

86512497

FLANGE NUT,M12 x 1.75, Cl 10

15шт.

39

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

8шт.

40

100020

NUT,M16 x 2.0, Cl 8

4шт.

41

86512498

FLANGE NUT,M16 x 2, Cl 10

1шт.

42

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

Выбрано товаров: 42
