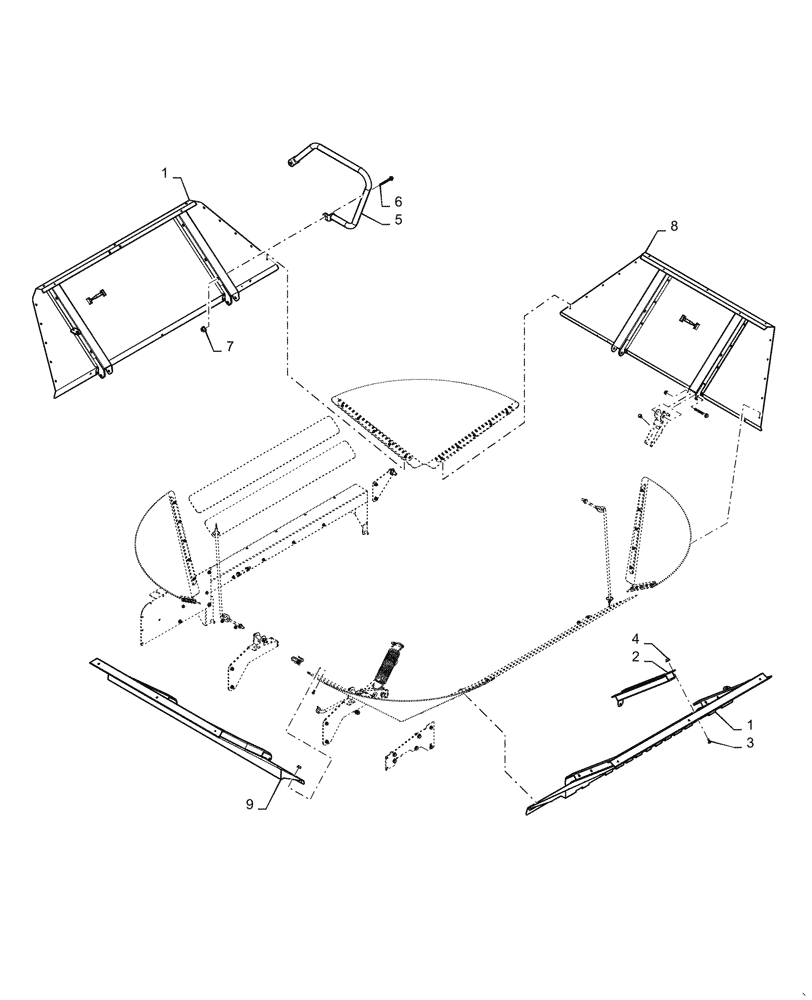

Запчасти Case IH 5088 (80.150.BG[02]) - GRAIN BIN EXTENSION, DOOR PANEL, 250 BU (80) - CROP STORAGE/UNLOADING

1

87554394

EXTENSION ASSY.

Front and Rear, 24"

2шт.

2

87756703

BRACKET

Bin Level Sensor Mount

1шт.

3

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

5

87109875

HANDLE

Grab Handle

1шт.

6

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

2шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

8

84368551

EXTENSION

LH, 24"

1шт.

9

84368545

EXTENSION

RH, 24"

1шт.
