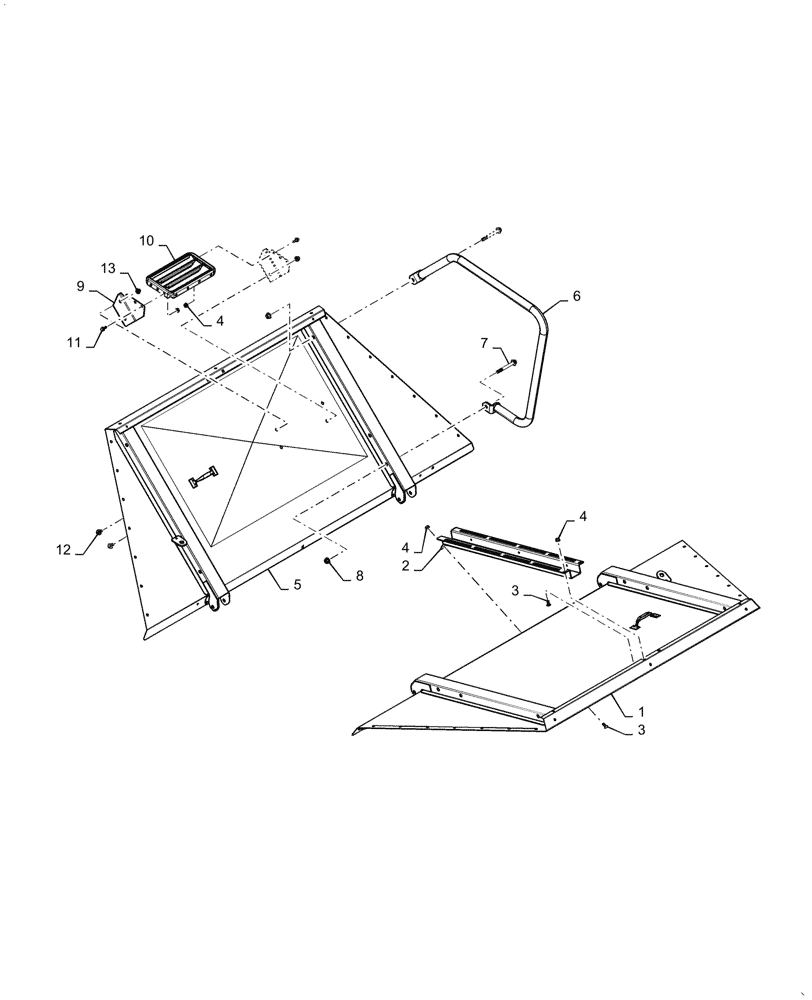

Запчасти Case IH 5088 (80.150.BF[03]) - VAR - 425470, 722511 - GRAIN TANK COVER, EXTENSION (80) - CROP STORAGE/UNLOADING

1

87554394

EXTENSION ASSY.

Front and Rear, 24", VAR - 425470

1шт.

1

87721662

EXTENSION ASSY.

Front, 32", VAR - 722511

1шт.

2

87756703

BRACKET

Bin Level Sensor, 24", VAR - 425470

1шт.

2

87685904

BRACKET

Bin Level Sensor, 32", VAR - 722511

1шт.

3

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

5

87735049

EXTENSION ASSY.

Rear, 32", VAR - 722511

1шт.

6

87109875

HANDLE

Grab, VAR - 425470

1шт.

6

87648705

HANDLE

Grab, VAR - 722511

1шт.

7

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

4шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

9

87609690

BRACKET

Step Extension, VAR - 722511

2шт.

10

1531337C1

STEP

VAR - 722511

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

VAR - 722511

4шт.

12

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

VAR - 722511

4шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

VAR - 722511

4шт.
