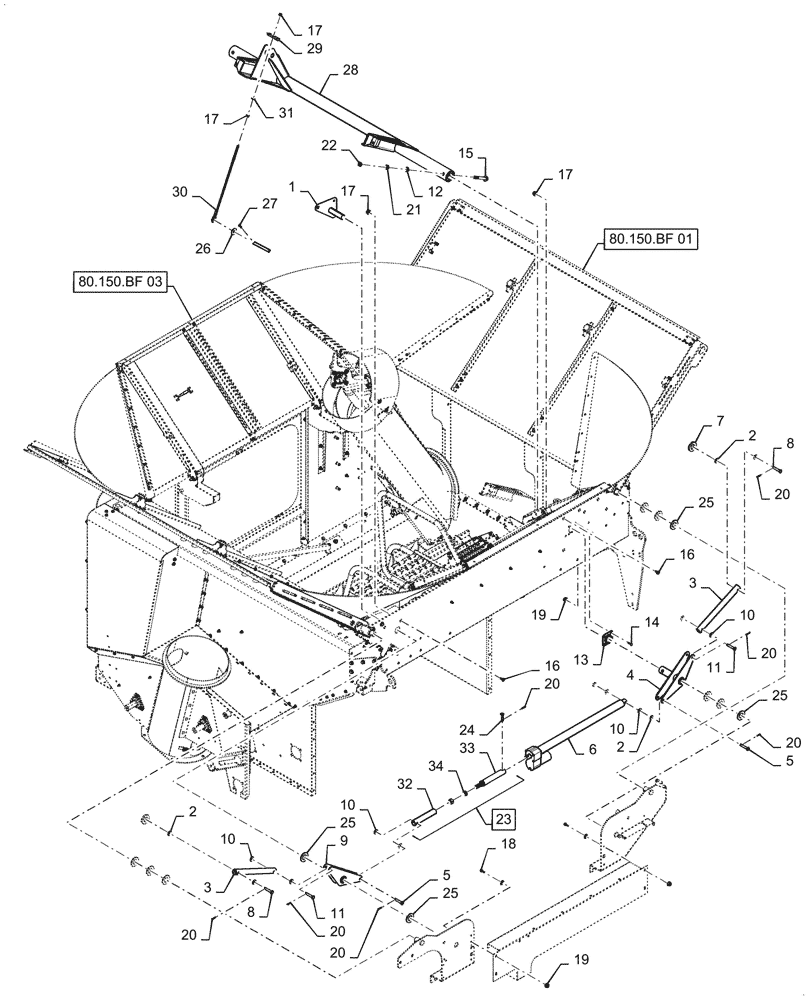

Запчасти Case IH 5088 (80.150.BF[02]) - VAR - 425470, 722511 - GRAIN TANK COVER, INSIDE (80) - CROP STORAGE/UNLOADING

1

87619951

BRACKET

Tube Support

1шт.

2

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

6шт.

3

87731370

TUBE,25.4 mm ID x 34.925 mm OD x 400 mm L

Top Link

2шт.

4

87720937

LINK ASSY.

Lower, RH

1шт.

5

87597958

CLEVIS PIN,12mm OD x 65mm L

2шт.

6

84181862

ACTUATOR

Heavy Wall Tube

1шт.

7

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

2шт.

8

87035064

CLEVIS PIN,12mm OD x 70mm L

2шт.

9

87731372

LINK ASSY.

Lower, LH

1шт.

10

87613189

WASHER,0.53" ID x 1.25" OD x 0.06" Thk

8шт.

11

728-1060

CLEVIS PIN,M10 x 60

2шт.

12

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

13

87710467

SUPPORT ASSY.

Rockshaft

1шт.

14

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

4шт.

15

87698807

BOLT,Hex, M16 x 120mm, Cl 10.9

2шт.

16

87036807

SCREW,Pan Cross Recess Phillips, M10 x 1.5 x 20mm, Cl 4.8

8шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

14шт.

18

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

20

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

7шт.

21

392530

NUT,M16, Cl 10

2шт.

22

10717511

THIN NUT,Thin, M16 x 2, Cl 04

2шт.

23

87740259

EXTENSION

Actuator Bar

1шт.

24

84056380

CLEVIS PIN,12mm OD x 50mm L

1шт.

25

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

11шт.

26

495-61066

WASHER

.656" ID x 1.75" OD x .100" Thk

1шт.

27

394818

COTTER PIN,M5 x 25

1шт.

28

47517661

ROCKSHAFT

Tank Cover

1шт.

29

84208529

BAR

Cable, Bubbler Linkage

1шт.

30

87740261

CABLE ASSY.

Bubbler Auger Lifting

1шт.

31

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

32

87740256

BAR ASSY.

Actuator Extension, Linkage Side

1шт.

33

87740258

BAR ASSY.

Actuator Extension, Actuator Side

1шт.

34

10726721

THIN NUT,Thin, M20 x 1.5, Cl 05

1шт.
