Запчасти Case IH 5088 (80.150.BF[01]) - VAR - 425470, 722511 - GRAIN TANK COVER (80) - CROP STORAGE/UNLOADING

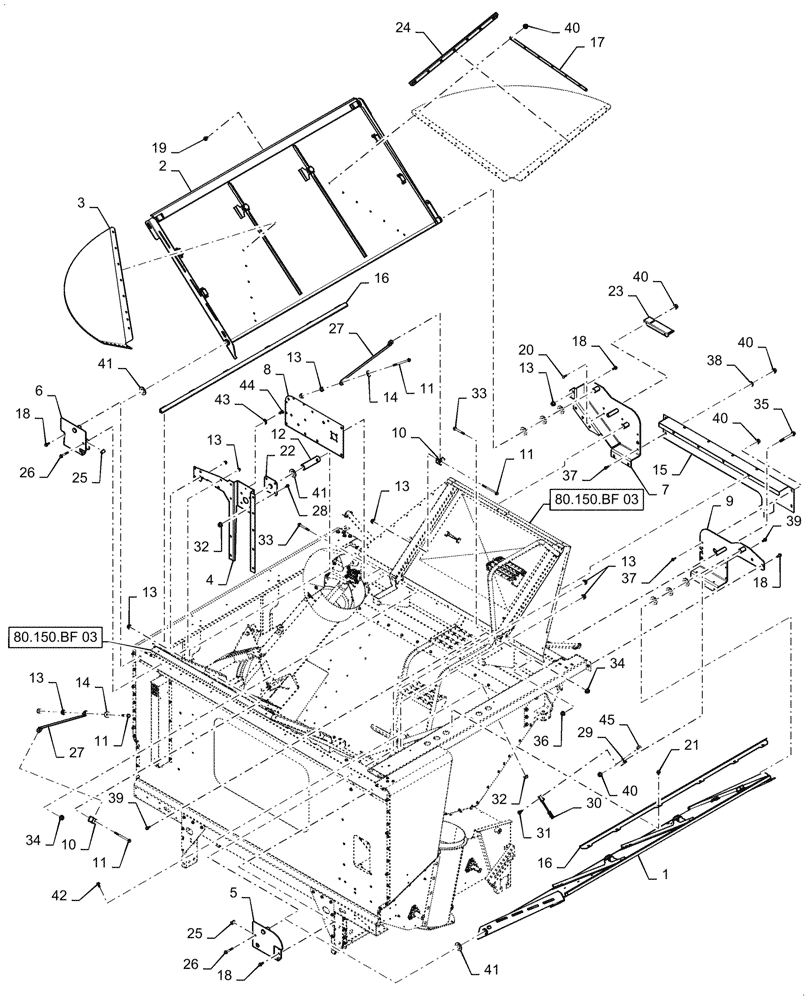

Схема запчастей Case IH 5088 - (80.150.BF[01]) - VAR - 425470, 722511 - GRAIN TANK COVER (80) - CROP STORAGE/UNLOADING
80.150.bf 03
26
20
24
21
11
18
30
27
18
11
25
27
36
41
39
13
13
23
35
45
25
13
34
26
40
10
6
10
37
33
13
3
17
29
4
41
8
37
31
38
13
19
16
18
14
39
41
43
9
2
11
40
1
5
40
14
16
22
7
32
40
13
44
42
12
28
15
33
40
18
34
11
32
13
80.150.bf 03

Артикул

Название

Примечание

Количество

1

87556613

COVER ASSY

Grain Tank, LH

1шт.

2

87556597

COVER ASSY

Grain Tank, RH

1шт.

3

87726836

CANVAS,938.3mm W x 1345.5mm L

Corner, Extension, 32", VAR - 722511

4шт.

3

87734459

CANVAS

Corner, Extension, 24", VAR - 425470

4шт.

4

84383903

BRACKET

Rockshaft, Front

1шт.

5

87727126

BRACKET

Tank Cover, Front, LH

1шт.

6

87727129

BRACKET

Tank Cover, Front, RH

1шт.

7

84300523

BRACKET

Tank Cover, Rear, RH

1шт.

8

87727319

SUPPORT ASSY.

Tank Cover, Rear, RH

1шт.

9

84300526

BRACKET

Tank Cover, Rear, LH

1шт.

10

87631786

CHANNEL

Wear

2шт.

11

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

4шт.

12

87726831

TUBE,31.7729 mm DIA

End, Front, W/ Bearing

1шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

18шт.

14

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

15

87579334

COVER ASSY

Access, Actuator

1шт.

16

87605674

SUPPORT ASSY.

Tank Top W/ Cover

2шт.

17

87727124

STRAP

Backing Corner, 300 BU, VAR - 722511

4шт.

17

87740262

STRAP

Backing Corner, 250 BU, VAR - 425470

4шт.

18

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

17шт.

19

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

56шт.

20

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

2шт.

21

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

6шт.

22

87631278

PLATE ASSY.

Rockshaft Retaining

1шт.

23

87643551

CHANNEL

Baffle Cover

1шт.

24

87735041

ANGLE

32" Extension, VAR - 722511

4шт.

24

84194670

ANGLE

24" Extension, VAR - 425470

4шт.

25

87686085

SPACER

Front Stopper

2шт.

26

87698845

BOLT,M12 x 70, Cl 10.9

2шт.

27

84411464

ROD

Linkage Extension

2шт.

28

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

14шт.

29

84203502

BRACKET

Cover Sensor

1шт.

30

87392235

SENSOR

Reed Switch, Non-Contact, Normally Open

1шт.

31

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

2шт.

32

86050279

FLANGE NUT,M10 x 1.5, Cl 10

14шт.

33

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

4шт.

34

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

35

87028052

BOLT,Hex Flg, M16 x 140, 10.9

2шт.

36

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

37

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

38

131-440

PUSH-ON NUT

Retainer

3шт.

39

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

40

86507066

FLANGE NUT,M8 x 1.25, Cl 10

36шт.

41

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

3шт.

42

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

43

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

44

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

45

86632551

NUT,#10-24, GB

2шт.

Выбрано товаров: 48
