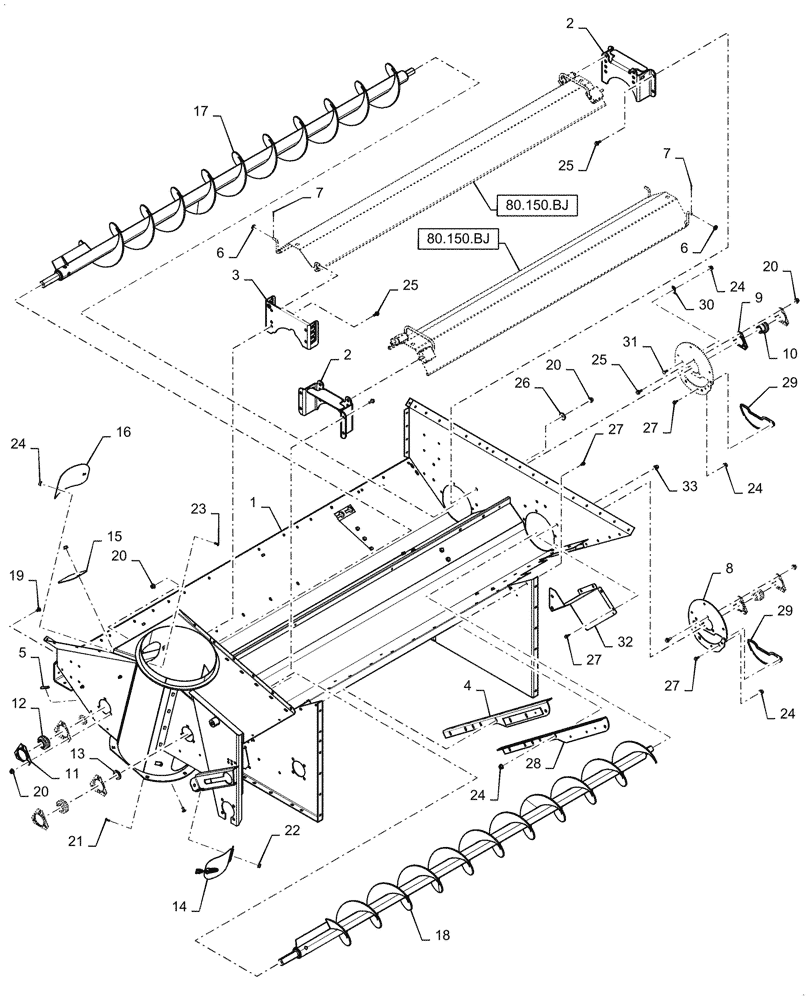

Запчасти Case IH 5088 (80.150.AI) - GRAIN TANK BOTTOM (80) - CROP STORAGE/UNLOADING

1

84372517

GRAIN TANK

Bottom

1шт.

2

86975993

BRACKET

Support

2шт.

3

86975994

BRACKET

Supporting

1шт.

4

84131453

ANGLE

Rear, LH

1шт.

5

NH291525

EDGE

Trim

1шт.

6

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

7

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

8

87342517

BEARING COVER

Clean Out

2шт.

9

84414986

FLANGE

Bearing

4шт.

10

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

2шт.

11

84414985

FLANGED BEARING

Auger

4шт.

12

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

13

84075099

WASHER,36mm ID x 51mm OD x 6mm Thk

2шт.

14

87583588

COVER ASSY

Clean Out

1шт.

15

86600691

COVER

Front

1шт.

16

86597524

COVER

Front Door

1шт.

17

84075321

AUGER

Front

1шт.

18

84075322

AUGER

Rear

1шт.

19

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

7шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

18шт.

21

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

1шт.

22

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

23

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

26шт.

25

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

17шт.

26

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

20шт.

28

84131457

ANGLE

Rear, RH

1шт.

29

87342513

COVER

Grain Tank Clean Out Door

2шт.

30

425093

CLAMP

Auger

6шт.

31

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

32

87564472

COVER

Auger Trough

1шт.

33

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.
