Запчасти Case IH 5088 (80.101.AR[02]) - CLEAN GRAIN ELEVATOR BOOT (80) - CROP STORAGE/UNLOADING

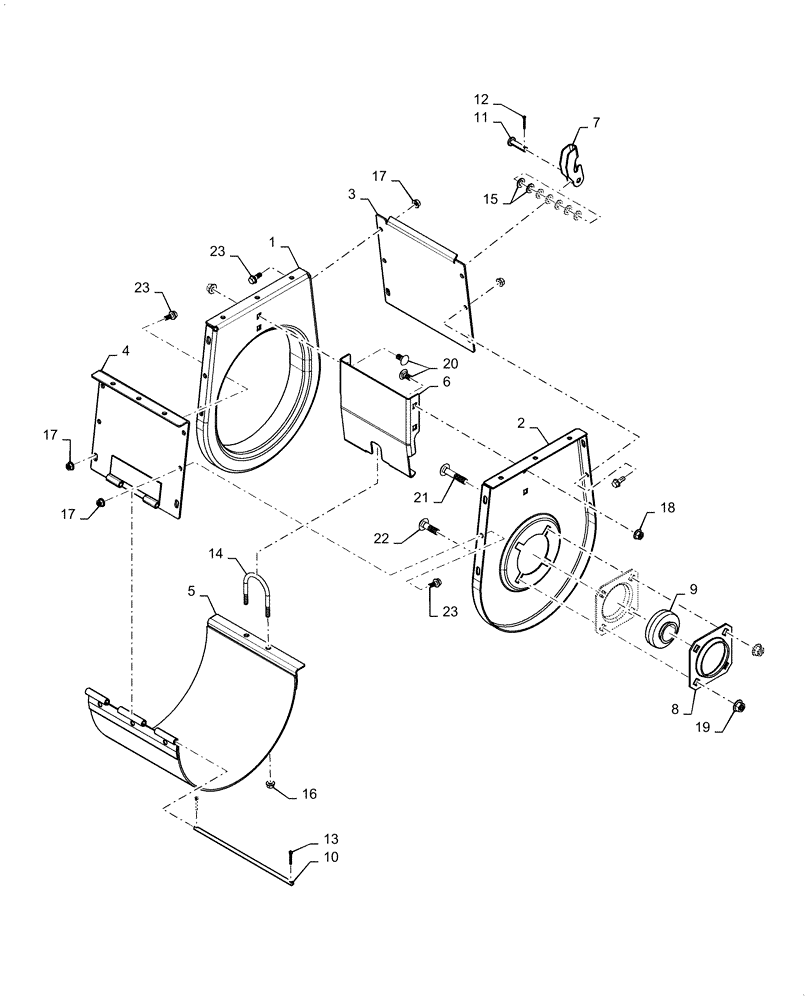

Схема запчастей Case IH 5088 - (80.101.AR[02]) - CLEAN GRAIN ELEVATOR BOOT (80) - CROP STORAGE/UNLOADING
5
16
3
11
1
20
14
17
12
21
4
19
6
22
15
9
10
18
23
8
2
17
17
13
23
7
23

Артикул

Название

Примечание

Количество

1

87310001

SIDE PLATE

Inner Boot, Serial Range: -Y9G002404

1шт.

1

84171638

PANEL ASSY.

Inner Boot, Start Serial: Y9G002404

1шт.

2

87310150

SIDE ASSY.

Outer Boot, Serial Range: -Y9G002404

1шт.

2

84171636

PANEL ASSY.

Outer Boot, Start Serial: Y9G002404

1шт.

3

87329806

COVER ASSY

Front Boot, Serial Range: -Y9G002404

1шт.

3

84171634

COVER ASSY

Front Boot, Start Serial: Y9G002404

1шт.

4

87329771

COVER ASSY

Rear Boot, Serial Range: -Y9G002404

1шт.

4

84149716

COVER ASSY

Rear Boot, Start Serial: Y9G002404

1шт.

5

87330124

DOOR ASSY.

Boot, Serial Range: -Y9G001972

1шт.

5

84149722

COVER ASSY

Boot, Start Serial: Y9G001973

1шт.

6

84173941

DEFLECTOR

Boot

1шт.

7

86581559

HANDLE

Door

1шт.

8

1307583C1

FLANGED BEARING

4 Bolt

2шт.

9

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

Auger Shaft

1шт.

10

87384964

PIN

Door, Serial Range: -Y9G002404

1шт.

10

84172562

PIN,7.9mm OD x 286mm L

, Start Serial: Y9G002404

1шт.

11

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

12

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

13

80755

COTTER PIN,1/8" OD x 1" L

2шт.

14

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

16

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

19

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

20

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

21

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

22

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

Выбрано товаров: 29
