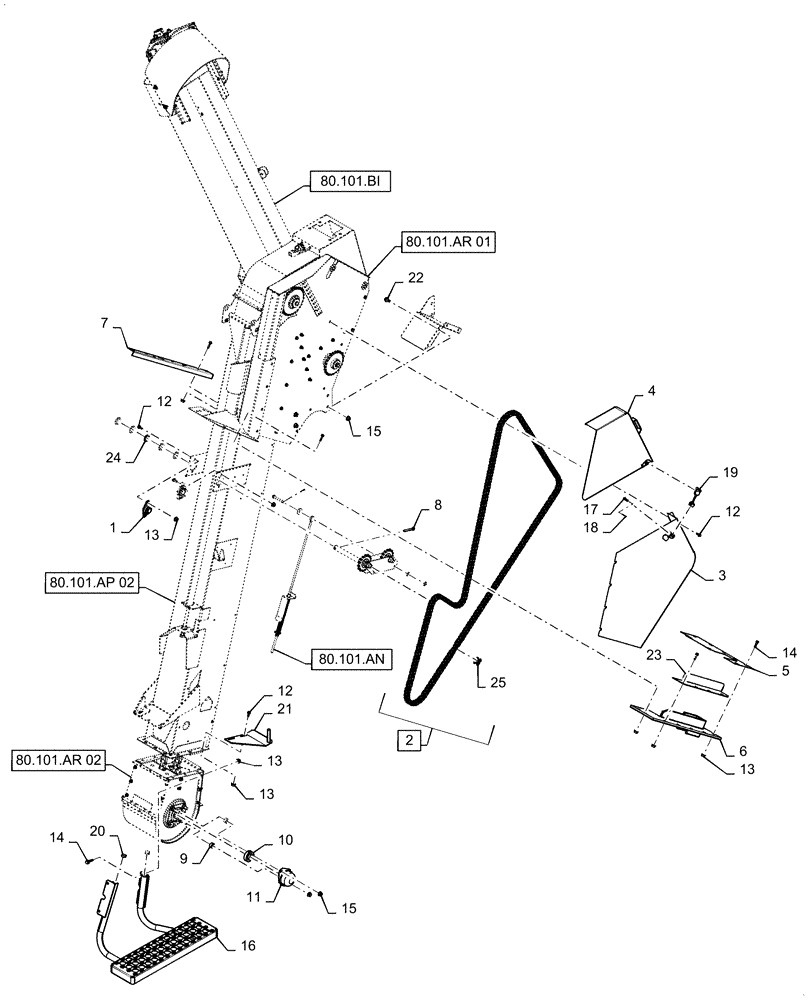

Запчасти Case IH 5088 (80.101.AP[01]) - CLEAN GRAIN ELEVATOR ASSY (80) - CROP STORAGE/UNLOADING

1

682452

FLANGED BEARING,25.46mm ID

2шт.

1

87364072

BEARING

.749" ID

2шт.

2

84163936

CHAIN (AG),60H, 224 Links x 19.05mm = 4267.2mm

Drive, Elevator, Incl 25, Start Serial: Y9G001954

1шт.

2

87362139

CHAIN (AG),#50, 266 Links x 15.88mm = 4222.75mm

Drive, Elevator, Serial Range: -Y9G001953

1шт.

3

84121900

SHIELD

Bubbler Drive

1шт.

4

84130534

COVER ASSY

Access, Elevator Drive

1шт.

5

84410229

PLATE

Elevator Front

1шт.

6

84402983

GUIDE

Drive Chain

1шт.

7

1317475C1

BRACKET

Tank Bottom Stiffener, LH

1шт.

8

300602

COTTER PIN

10mm x 63mm L

1шт.

9

168368

SPACER,13.4mm ID x 25.4mm OD x 11.1mm OAL

2шт.

10

87313329

COLLAR

Cover

1шт.

11

86996082

COVER

Boot Bearing

1шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

24шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

37шт.

14

87030775

BOLT,M8 x 38.1mm, Cl 10.9

24шт.

15

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

16

84172835

STEP

Elevator

1шт.

17

728-640

RETAINER

Clevis Pin

1шт.

18

733-1610

COTTER PIN,M1.6 x 10

1шт.

19

494307C1

LATCH

Hook Hood

1шт.

20

86627131

PLUG,Dome, .875" hole, Nylon

2шт.

21

87706141

SUPPORT

Lower Door, RH

1шт.

22

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

23

84410232

ANGLE

Drive Tunnel Gap

1шт.

24

87602935

WASHER,1.06" ID x 1.62" OD x 0.07" Thk

5шт.

25

84173631

LINK,19.05mm Pitch

Connecting

4шт.
