Запчасти Case IH 5088 (74.140.BM[01]) - TAILINGS ELEVATOR UPPER AUGER, ASN Y9G001953 (74) - CLEANING

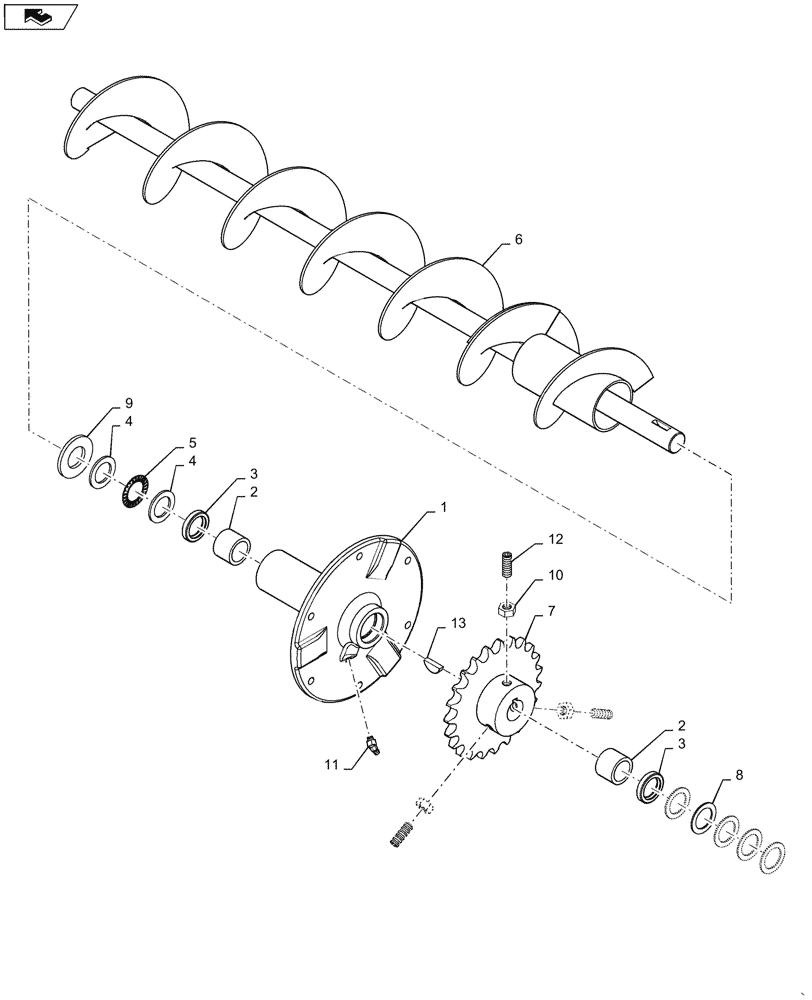

Схема запчастей Case IH 5088 - (74.140.BM[01]) - TAILINGS ELEVATOR UPPER AUGER, ASN Y9G001953 (74) - CLEANING
3
3
9
13
2
1
10
8
4
11
4
12
7
2
5
6

Артикул

Название

Примечание

Количество

1

87692304

BEARING HOUSING,36.525 mm ID x 177.8 mm OD x 160 mm

1шт.

2

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

33.325mm OD x 25.4mm ID x 25.4mm

2шт.

3

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

36.5mm OD x 25.4mm ID x 6.5mm

2шт.

4

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

2шт.

5

1324864C91

THRUST BEARING

39.67mm OD x 25.4mm ID x 1.984mm

1шт.

6

87379140

AUGER

Tailings Delivery

1шт.

7

84542305

SPROCKET

23 Tooth

1шт.

8

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

5шт.

9

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

12

300484

SET SCREW

M10 x 30mm

3шт.

13

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

Выбрано товаров: 13
