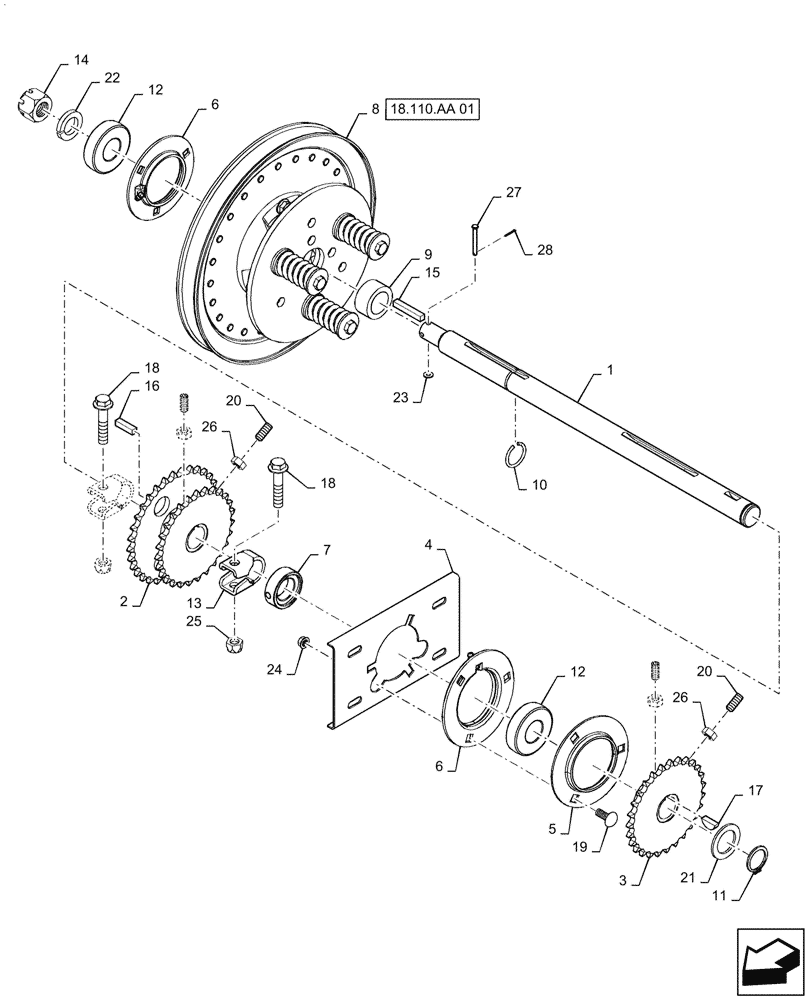

Запчасти Case IH 5088 (74.140.AX[01]) - DRIVE ASSEMBLY, ELEVATOR JACKSHAFT, BSN Y9G001953 (74) - CLEANING

1

87472290

JACKSHAFT

Elevator Drive

1шт.

2

87730056

SPROCKET

Elevator Drive

1шт.

3

87737142

SPROCKET

Elevator Drive

1шт.

4

192138C2

BRACKET

Elevator Jackshaft Outer Support

1шт.

5

36403

BEARING HOUSING

1шт.

6

87430561

FLANGE

With Lube Fitting, Jackshaft Bearing

2шт.

7

87431214

COLLAR,31.8mm ID x 53.98mm OD x 17.5mm W

Lock

1шт.

8

REF

INSTRUCTION

CLUTCH, Elevator Jackshaft

1шт.

9

87679416

SPACER

Elevator Jackshaft

1шт.

10

1319235C1

RING

Elevator Jackshaft, Serial Range: -Y9G001953

1шт.

10

84213582

SNAP RING

Elevator Jackshaft, Start Serial: Y9G001953

1шт.

11

100-16125

SNAP RING,#125, Ext

1шт.

12

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

2шт.

13

225265R1

CLAMP

Tie Rod

2шт.

14

11693821

SLOTTED NUT,M24 x 2, Cl 10

1шт.

15

586879R1

KEY

1шт.

16

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

17

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

18

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

19

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

20

300483

SET SCREW,M10 x 25mm

, Serial Range: -Y9G001953

4шт.

20

300484

SET SCREW

, Start Serial: Y9G001953

4шт.

21

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1шт.

22

88695

LOCK WASHER,1 1/8"

, Start Serial: Y9G001953

1шт.

22

492-11100

LOCK WASHER,1"

, Serial Range: -Y9G001953

1шт.

23

495-31022

WASHER,#10

1шт.

24

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

25

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

26

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

4шт.

27

427-3175

CLEVIS PIN,4.78mm OD x 44.45mm L

1шт.

28

432-48

COTTER PIN,1/16" x 1/2"

1шт.
