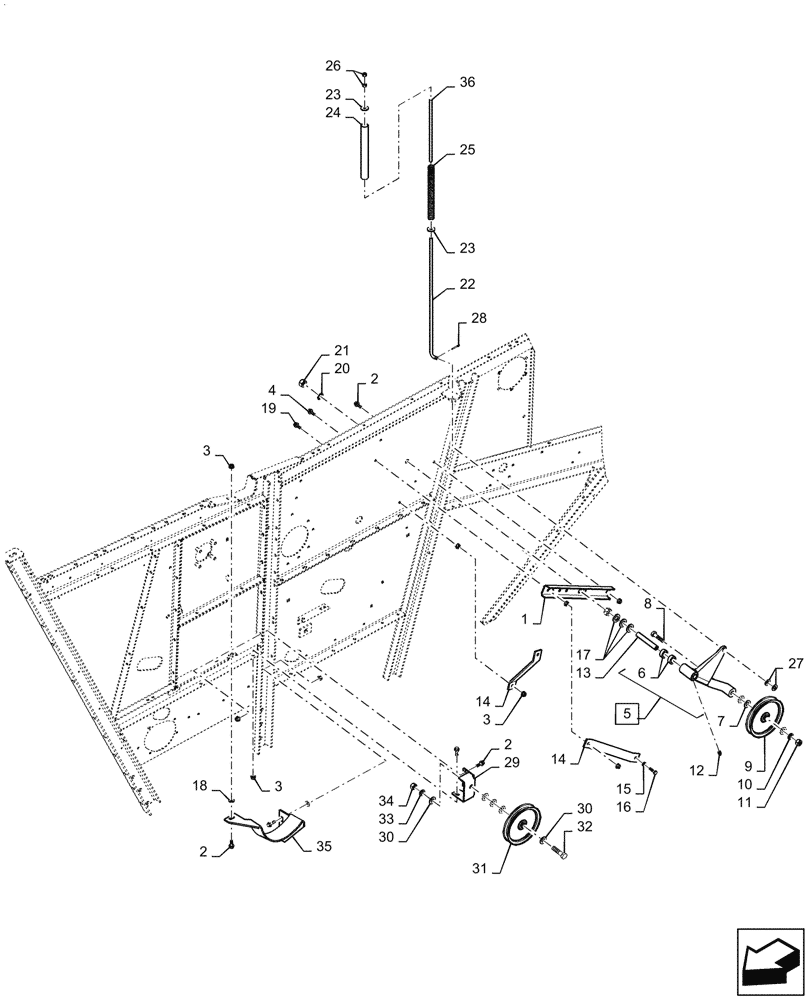

Запчасти Case IH 5088 (74.140.AM) - TAILINGS ELEVATOR JACKSHAFT IDLER (74) - CLEANING
№
Артикул
Название
Примечание
Количество
1
87742025
CHANNEL
Pivot Support
1шт.
3
86050279
FLANGE NUT,M10 x 1.5, Cl 10
11шт.
4
87698839
FLANGE BOLT,M10 x 40mm, Cl 10.9
1шт.
7
87365
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
3шт.
8
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
1шт.
9
86996213
IDLER,185.74mm OD
Belt, Stationary Idler
1шт.
10
492-11062
BEARING WASHER,5/8"
1шт.
11
425-1010
NUT,5/8"-11, G5
1шт.
12
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
13
1327538C1
STUD
Pivot Arm
1шт.
15
492-11038
LOCK WASHER,3/8"
1шт.
16
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
17
495-11081
WASHER,3/4", SAE
3шт.
18
495-81135
WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk
3шт.
19
87698838
FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9
3шт.
20
493-41078
LOCK WASHER,Ext Tooth, 3/4"
1шт.
21
425-1012
NUT,3/4"-10, G5
2шт.
22
115160A1
ROD
Elevator Jackshaft Belt Tensioner, Serial Range: -Y9G001949
1шт.
22
87485727
ROD
Elevator Jackshaft Belt Tensioner, Start Serial: Y9G001949
1шт.
23
495-81162
WASHER,17/32" x 1 1/2" x .179"
2шт.
24
1994931C1
SPACER
Elevator Drive Spring, Serial Range: -Y9G001937
1шт.
24
87485725
SPACER,31.63mm ID x 34.93mm OD x 278mm L
Elevator Drive Spring, Start Serial: Y9G001937
1шт.
25
155311C1
SPRING
Elevator Drive Idler Lever
1шт.
26
425-108
NUT,1/2" - 13, Gr 5
2шт.
27
495-11053
WASHER,1/2", SAE
2шт.
29
87742023
SUPPORT
Elevator Drive, Fixed Idler
1шт.
30
87365
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
5шт.
31
86996213
IDLER,185.74mm OD
Belt, Stationary Idler
1шт.
32
413-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
1шт.
33
492-11062
BEARING WASHER,5/8"
1шт.
34
425-1010
NUT,5/8"-11, G5
1шт.
35
87742021
GUIDE
Lower Belt, Cleaning Unit
1шт.
36
84155000
SPACER
Belt Tension Spring, Inner
1шт.
Выбрано товаров: 38
