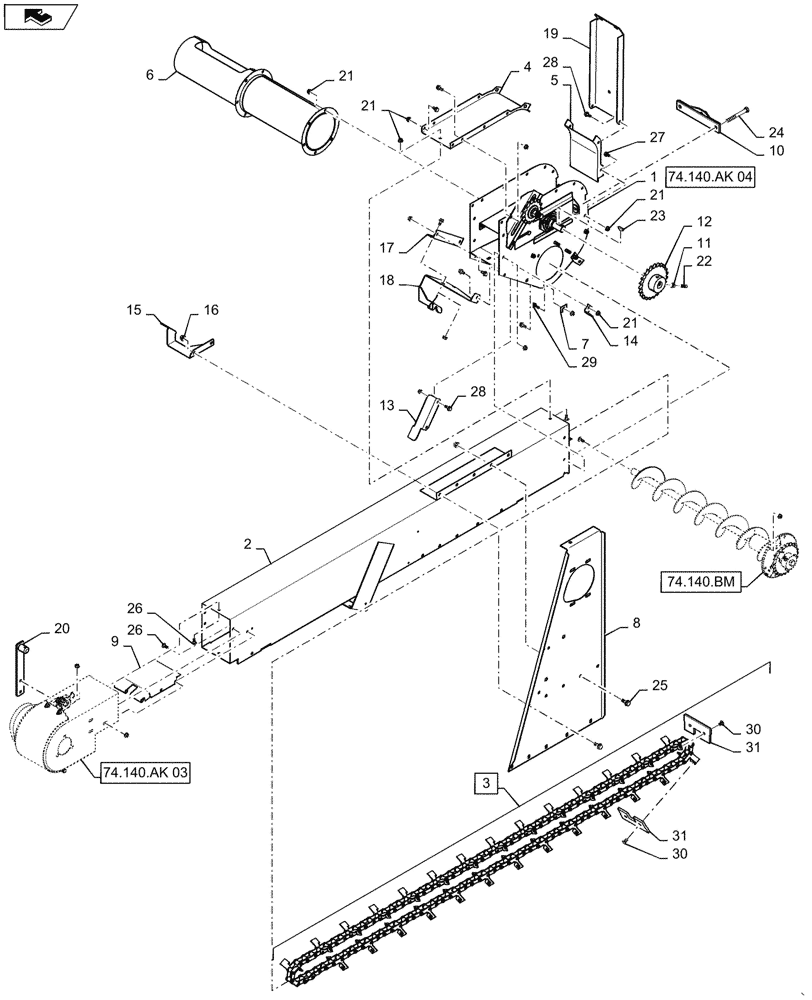

Запчасти Case IH 5088 (74.140.AK[02]) - TAILINGS ELEVATOR CHAIN, ASN Y9G001953 (74) - CLEANING

1

847-3825

SERRATED SCREW,M8 x 25mm, Cl 10.9

1шт.

2

87756199

ELEVATOR TUBE

Tailings Elevator

1шт.

3

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

Tailings Elevator, Incl 30, 31

1шт.

4

87735106

TOP COVER

Tailings Elevator Head

1шт.

5

87622920

SUPPORT

Tailings Elevator Head

1шт.

6

87687117

TUBE

Tailings Delivery Auger

1шт.

7

151670C1

SHIM

Fender, 1.25"

1шт.

8

84164209

BRACKET

Outer Elevator Jackshaft

1шт.

9

87622917

END

False Bottom

1шт.

10

87622976

LOCK

Bar

1шт.

11

100016

NUT,M10 x 1.5, Cl 8

3шт.

12

84542305

SPROCKET

23 Tooth

1шт.

13

87707059

SUPPORT

Upper Shield

1шт.

14

142478A2

BRACKET

Chain Shield

1шт.

15

87685994

BRACKET

Chain Guide

1шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

17

87707064

ANGLE

RH Shield Support

1шт.

18

87703137

SUPPORT

Bracket, Upper Elevator

1шт.

19

87609175

SUPPORT

Tailings Elevator, Upper

1шт.

20

87657116

BRACKET

Shield

1шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

46шт.

22

300484

SET SCREW

M10 x 30mm

3шт.

23

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

24

9837937

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

25

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

5шт.

26

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

13шт.

27

87681207

BOLT,M8 x 24.1mm, Cl 10.9

15шт.

28

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

9шт.

29

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

30

1303116C1

RUBBER FLIGHT

Tailings Elevator Chain

27шт.

31

185315C1

RIVET

3/8" x 5/8"

54шт.
