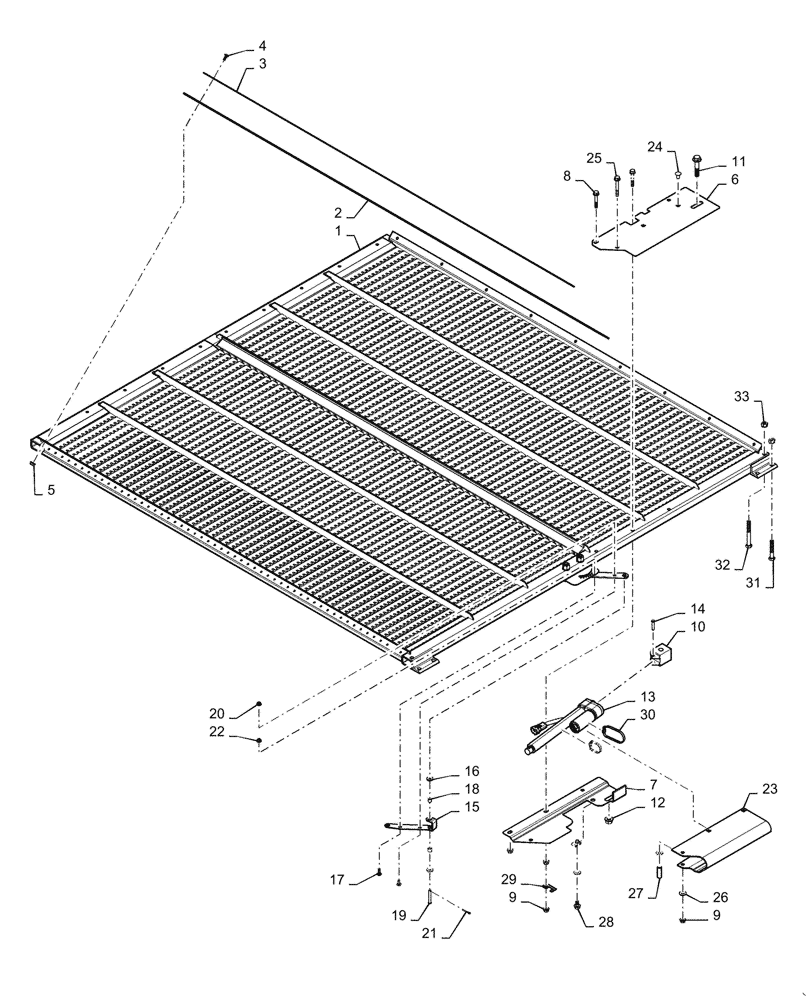

Запчасти Case IH 5088 (74.118.AD[02]) - VAR - 722731, 722733 - SIEVE, LOWER, REMOTE CONTROL (74) - CLEANING

1

87712276

SIEVE,Lower Closz 1-5/8", 60.20" x 64.96"

Lower, 1 5/8" Closz

1шт.

1

87712275

SIEVE,Lower Closz 1-1/8", 60.20" x 65.96"

Lower, 1 1/8" Closz

1шт.

2

198925A1

SEAL,56mm W x 1790mm L

Sieve, Front

2шт.

3

87712566

BAR

Seal Strap

2шт.

4

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

19шт.

5

86050300

FLANGE NUT,M6 x 1.0, Cl 10

18шт.

6

84130561

SHIELD

Actuator Mount, Top

1шт.

7

84130550

SHIELD

Actuator Mount, Bottom

1шт.

8

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

3шт.

9

87681210

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

10

87705852

BLOCK

Sieve Actuator

1шт.

11

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

13

87347281

ACTUATOR

Sieve Adjustment

1шт.

14

47479764

CLEVIS PIN,1/4" OD x 1.219" L

1/4" OD x 1.219"

1шт.

15

87705855

STRAP

Actuator Link

1шт.

16

86624138

WASHER,0.28" ID x 0.75" OD x 0.12" Thk

2шт.

17

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

18

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

1/8" Pipe, 9mm

2шт.

19

86624059

HEADED PIN,1/4" x 1 7/8"

1шт.

20

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

22

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

23

87705853

COVER

Rear Actuator

1шт.

24

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

1шт.

25

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

26

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

5шт.

27

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

1шт.

28

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

29

87013667

CLIP

Harness Mount

1шт.

30

86566989

CABLE TIE,208mm L

2шт.

31

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

32

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

2шт.

33

86512554

NUT,M10 x 1.5, Cl 10

4шт.
