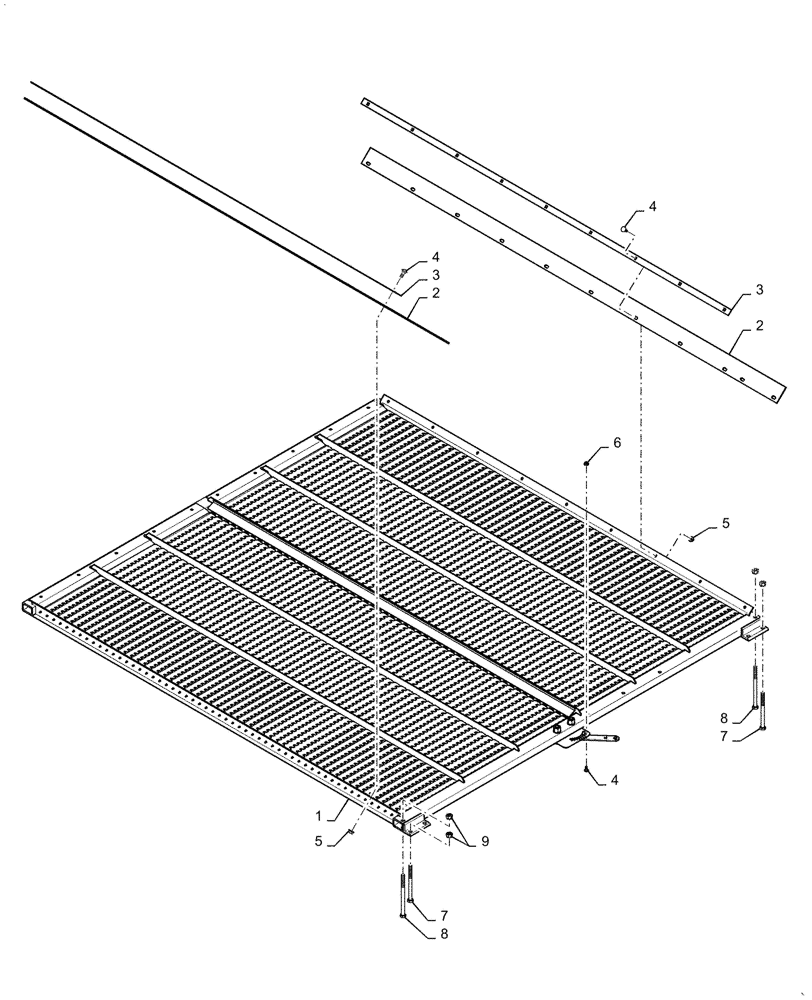

Запчасти Case IH 5088 (74.118.AD[01]) - VAR - 722726, 722728 - SIEVE, LOWER, MECHANICAL (74) - CLEANING

1

87712276

SIEVE,Lower Closz 1-5/8", 60.20" x 64.96"

Lower, 1 5/8" Closz

1шт.

1

87712275

SIEVE,Lower Closz 1-1/8", 60.20" x 65.96"

Lower, 1 1/8" Closz

1шт.

2

198925A1

SEAL,56mm W x 1790mm L

Sieve, Front

2шт.

3

87712566

BAR

Seal Strap

2шт.

4

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

19шт.

5

86050300

FLANGE NUT,M6 x 1.0, Cl 10

18шт.

6

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

1шт.

7

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

8

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

2шт.

9

86512554

NUT,M10 x 1.5, Cl 10

4шт.
