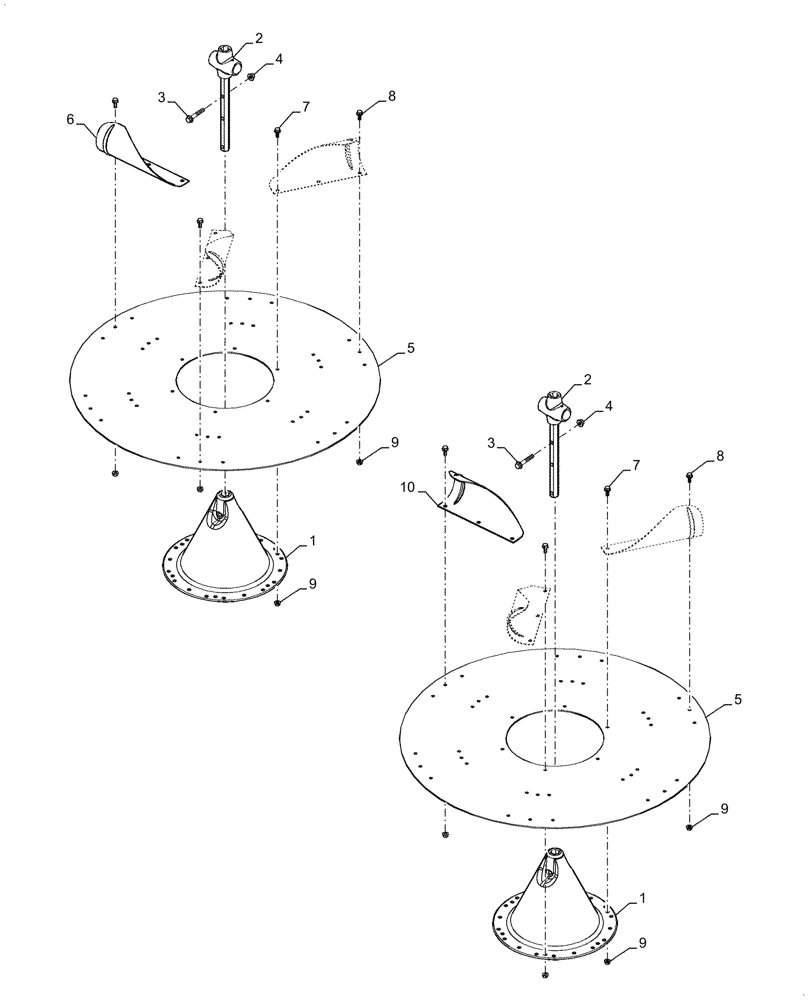

Запчасти Case IH 5088 (73.430.AA[07]) - CHAFF SPREADER DISC (73) - RESIDUE HANDLING

1

47442301

SUPPORT

Straw Spreader Cone

2шт.

2

87648715

SHAFT

Detent

2шт.

3

87656139

BOLT,M10 x 70.4mm, Cl 10.9

M10 x 60

2шт.

4

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

5

140189A1

DISC

Chaff Spreader

2шт.

6

87726623

BAT

LH Curved Spreader

3шт.

7

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

18шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

24шт.

10

87726624

BAT

RH Curved Spreader

3шт.
