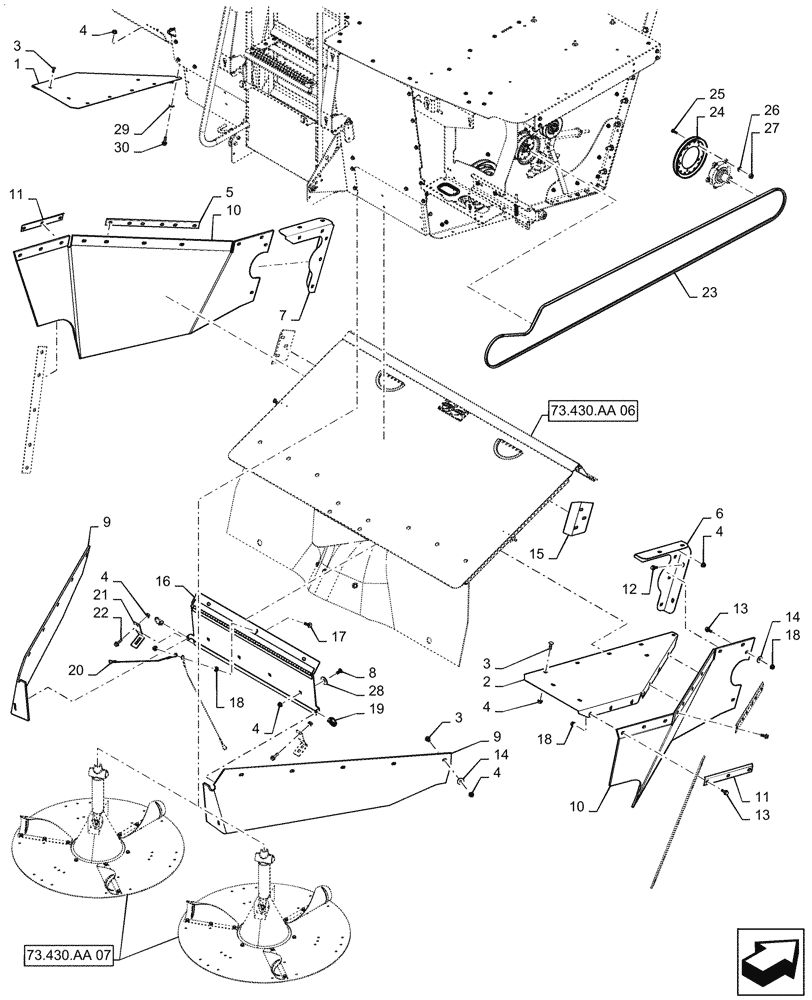

Запчасти Case IH 5088 (73.430.AA[05]) - SPREADER HOOD, CHAFF SPREADER (73) - RESIDUE HANDLING

1

87478154

BRACKET

LH Straw Spreader Shield

1шт.

2

87478152

BRACKET

RH Straw Spreader Shield

1шт.

3

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

24шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

33шт.

5

87652036

BRACKET

Straw Spreader Shield Strip

2шт.

6

87686615

BRACKET

RH Spreader Seals

1шт.

7

87686616

BRACKET

LH Spreader Seals

1шт.

8

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

4шт.

9

87732802

SEAL

Spreader

2шт.

10

87688165

SEAL

Spreader

2шт.

11

87652033

BRACKET

Straw Spreader Shield Strip

2шт.

12

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

4шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

22шт.

14

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

18шт.

15

87701981

PLATE ASSY.

Spreader Seal

2шт.

16

84203151

DEFLECTOR

Spreader

1шт.

17

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

1шт.

18

87681210

FLANGE NUT,M8 x 1.25, Cl 10

23шт.

19

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

20

427336A1

CABLE,457.2mm L

Spreader Sheet

2шт.

21

87705426

DEFLECTOR

Angle

2шт.

22

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

2шт.

23

84163222

V-BELT,6367.00 mm L

Spreader Drive

1шт.

24

87735652

PULLEY

Spreader Drive

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

26

492-11031

LOCK WASHER,5/16"

5шт.

27

425-105

NUT,5/16"-18, G5

5шт.

28

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

4шт.

29

131-440

PUSH-ON NUT

Retainer

2шт.

30

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.
