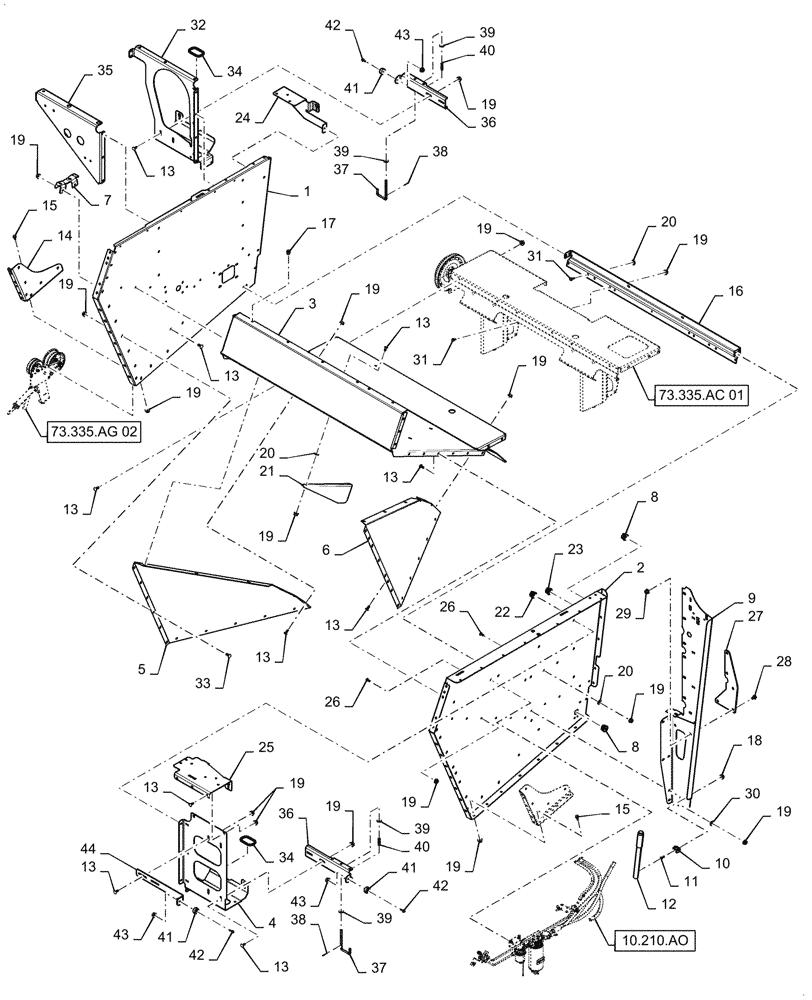

Запчасти Case IH 5088 (73.230.AQ[02]) - REAR HOOD BOX (73) - RESIDUE HANDLING

1

87735822

SHEET ASSY.

Rear Hood, RH

1шт.

2

87735820

SHEET ASSY.

Rear Hood, LH

1шт.

3

84130486

SUPPORT ASSY.

Fuel Tank

1шт.

4

87756390

BRACKET

Rear Hood, LH

1шт.

5

87682344

DEFLECTOR

Hood, RH

1шт.

6

87682346

DEFLECTOR

Hood, LH

1шт.

7

87751534

BRACKET

Spreader Lever Stop

1шт.

8

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

3шт.

9

87484734

SUPPORT

Unloader Saddle

1шт.

10

106744A1

CLIP

Sieve Handle

2шт.

11

44334

SCREW,Cross Pan Hd, M4 x 12

2шт.

12

106743A1

HANDLE

Extension Assy

1шт.

13

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

92шт.

14

87602902

GUSSET

Corner Reinforcement

2шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

16

87636063

SUPPORT

Rear Hood Rail

1шт.

17

87697608

NUT

Rivet, M8 x 1.25

6шт.

18

87301238

NUT,Flange Hex, M4 x 0.7

2шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

119шт.

20

131-440

PUSH-ON NUT

Retainer

13шт.

21

115497A1

DEFLECTOR

Rotor Discharge

1шт.

22

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

23

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

24

87756392

BRACKET

Corner Panel, RH

1шт.

25

87756386

BRACKET

Corner Panel, LH

1шт.

26

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

3шт.

27

87484624

PLATE

Saddle Support

1шт.

28

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

29

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

30

496-81010

WASHER

.469 " x 1" x .105"

1шт.

31

87698833

BOLT,M8 x 33.1mm, Cl 10.9

8шт.

32

84143013

BRACKET

Rear Hood, RH

1шт.

33

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

16шт.

34

87283963

INSULATOR

Conduit

1шт.

35

84143017

SUPPORT

Deck

1шт.

36

87497819

BRACKET

Latch

2шт.

37

87728300

PIN

Panel Lock

2шт.

38

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

40

192216A1

SPRING

Safety Stand Rod

2шт.

41

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

3шт.

42

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

43

86619800

FLANGE NUT,M6 x 1, Cl 8

3шт.

44

87651938

SUPPORT

Rear Door, LH

1шт.
