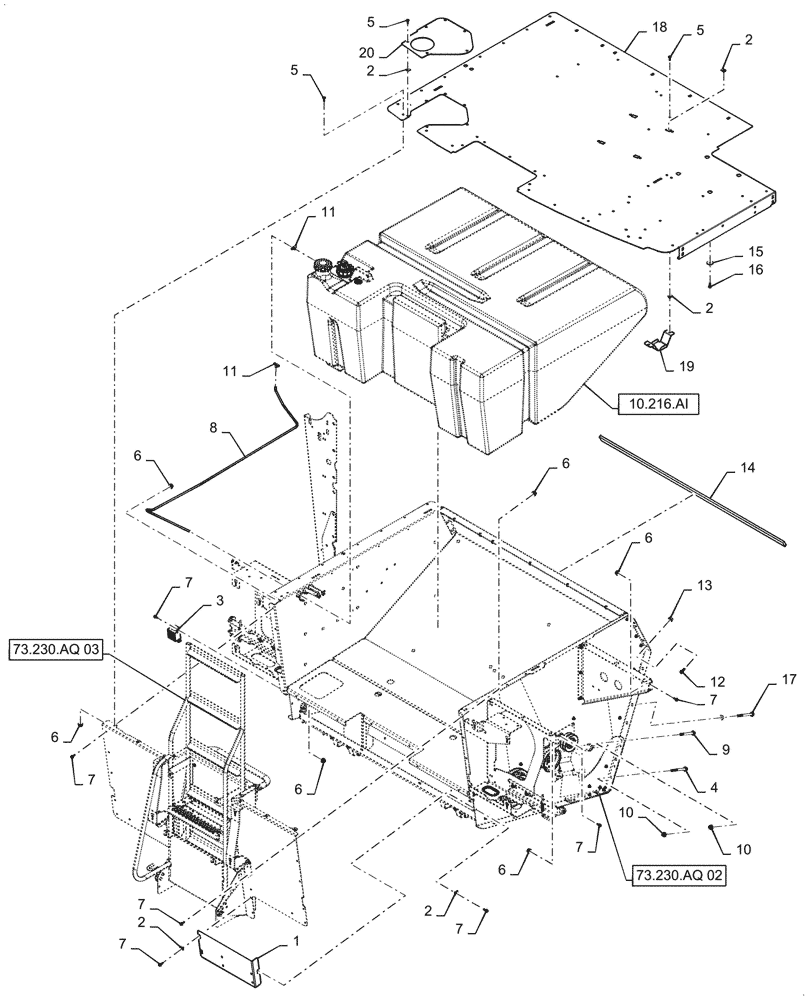

Запчасти Case IH 5088 (73.230.AQ[01]) - REAR HOOD (73) - RESIDUE HANDLING

1

87593881

RUNNER

Rear Hood Access Sheet

2шт.

2

86508354

PUSH-ON NUT,M8 x 1.25

20шт.

3

L112318

ALARM

Backup

1шт.

4

87742362

BOLT,M12 x 130mm, Cl 10.9

4шт.

5

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

38шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

44шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

35шт.

8

87713111

TUBE

Fuel Tank Vent

1шт.

9

87698848

FLANGE BOLT,M12 x 120mm, Cl 10.9

10шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

14шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

12

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

10шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

10шт.

14

87727299

FOAM

Strip

1шт.

15

495-81122

WASHER,.344" x 1 1/2" x .120"

4шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

17

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

18

84197619

SHEET

Engine Service

1шт.

19

87599485

BRACKET

Fuel Tank Hold Down

2шт.

20

87678478

COVER

Fuel Tank Spout

1шт.
