Запчасти Case IH 5088 (72.350.AJ[01]) - SEPARATOR JACKSHAFT SUPPORT, STRAW CHOPPER (72) - SEPARATION

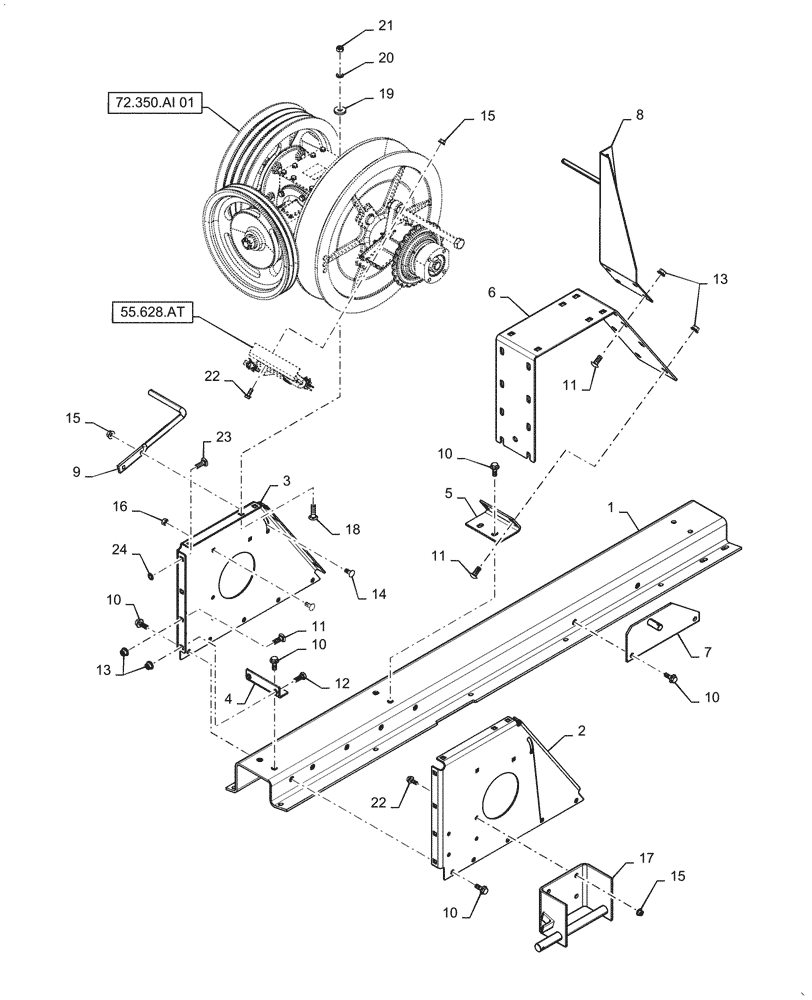

Схема запчастей Case IH 5088 - (72.350.AJ[01]) - SEPARATOR JACKSHAFT SUPPORT, STRAW CHOPPER (72) - SEPARATION
15
11
23
17
6
10
19
10
9
15
10
7
16
14
10
3
24
11
10
55.628.at
5
13
13
15
11
20
72.350.ai 01
18
8
4
2
12
1
22
21
22

Артикул

Название

Примечание

Количество

1

87549534

CHANNEL

Jackshaft Support

1шт.

2

87393437

SUPPORT

Jackshaft, RH

1шт.

3

87393438

SUPPORT

Jackshaft, LH

1шт.

4

87757057

SUPPORT

Angle, Jackshaft Support, Rear

1шт.

5

87757061

SUPPORT

Angle, Jackshaft Support, Front

1шт.

6

87393439

SUPPORT

Jackshaft Top

1шт.

7

87757085

GUIDE

Aux Shift Handle Support

1шт.

8

84137864

SUPPORT ASSY.

Belt Guide Channel

1шт.

9

87331545

ROD

Belt Guide

1шт.

10

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

16шт.

11

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

10шт.

12

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

14

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

15

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

16

87698854

NUT,M10

1шт.

17

1315251C1

SUPPORT

Idler Pivot

1шт.

18

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

6шт.

19

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

20

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

21

337475

NUT,M12, Cl 10

6шт.

22

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

23

87695427

CARRIAGE BOLT,M12 x 35mm, Cl 10.9

4шт.

24

87698855

PUSH-ON NUT

Retainer

4шт.

Выбрано товаров: 24
