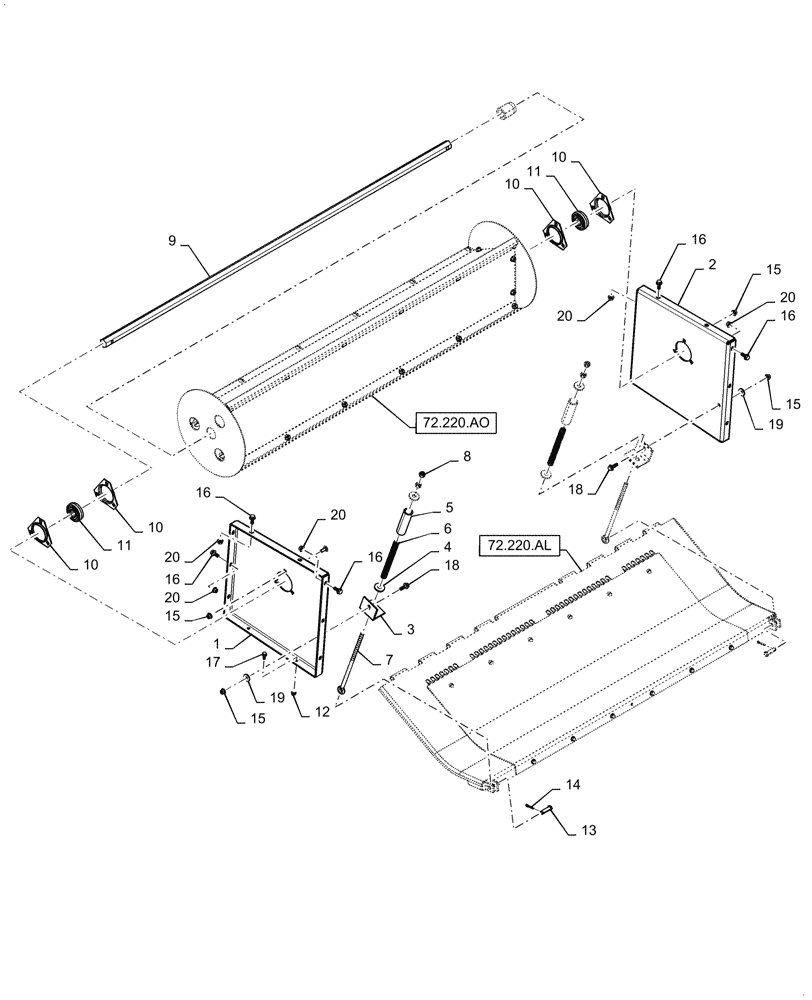

Запчасти Case IH 5088 (72.220.AJ) - BEATER HOUSING (72) - SEPARATION

1

87752640

SUPPORT ASSY.

Beater, LH

1шт.

2

87752641

SUPPORT ASSY.

Beater, RH

1шт.

3

182896C2

SUPPORT

Beater Bottom

2шт.

4

495-81162

WASHER,17/32" x 1 1/2" x .179"

4шт.

5

182981C1

SPACER

Tension Rod

2шт.

6

391745R1

SPRING

Tension

2шт.

7

182892C2

BOLT,1/2" - 13 x 330mm

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

4шт.

9

1302176C2

SHAFT

Discharge Beater

1шт.

10

84414985

FLANGED BEARING

3 Bolt

4шт.

11

87376564

BALL BEARING,28.47mm Hex x 72mm OD x 25mm W

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

13

439-1828

HEADED PIN,1/2" x 1 3/4"

2шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

8шт.

16

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

16шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

18

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

19

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

16шт.
