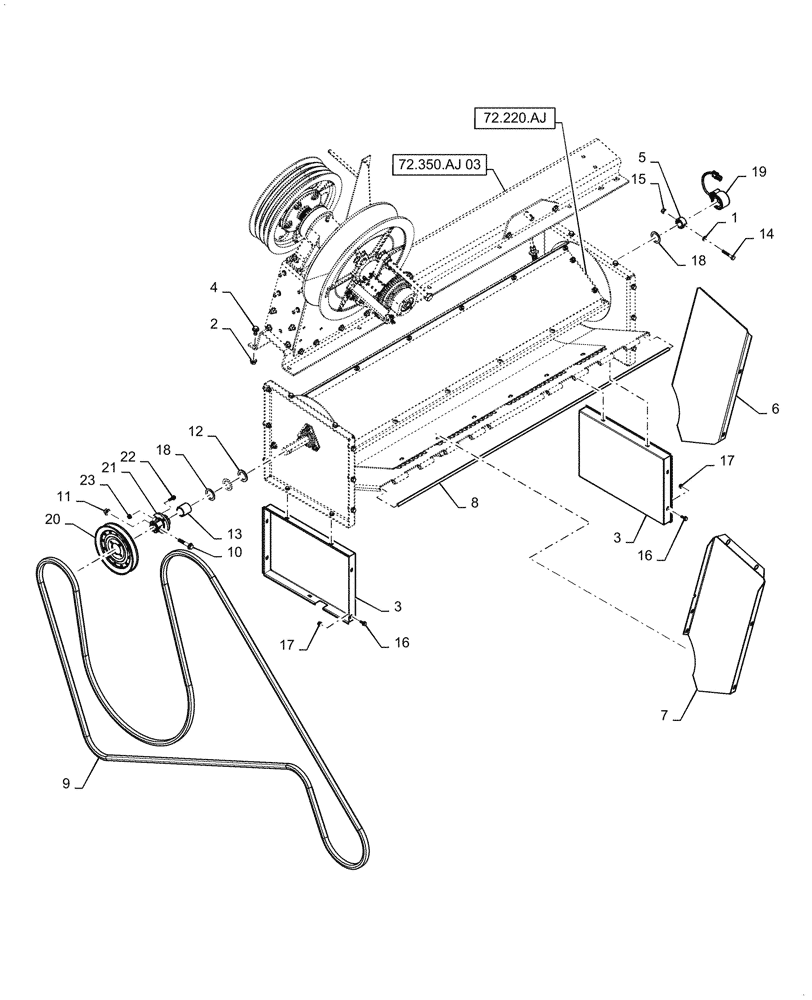

Запчасти Case IH 5088 (72.220.AB) - BEATER PULLEY & BELT (72) - SEPARATION

1

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

2

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

3

87753814

SHEET

Chopper Beater Filler

2шт.

4

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

5

117051A1

HUB

Beater, Fixed

1шт.

6

182948C2

DEFLECTOR

Discharge, LH

1шт.

7

182949C2

DEFLECTOR

Discharge, RH

1шт.

8

182980C1

ROD,11.11mm OD x 1556mm L

Hinge

1шт.

9

186509C2

BELT,0.879" W x 255.99" L

Cleaning System Drive W/ Beater, Serial Range: -Y9G002025

1шт.

9

87476487

V-BELT,22.33 mm W x 6502.40 mm L

Cleaning System Drive W/ Beater, Start Serial: Y9G002025

1шт.

10

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

11

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

12

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

2шт.

13

632147R1

SPACER

Auger Drive

1шт.

14

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

18

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

2шт.

19

87397583

SENSOR

Low Speed Shaft

1шт.

20

87752814

PULLEY

Beater

1шт.

21

1319402C1

HUB

Beater

1шт.

22

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

23

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
