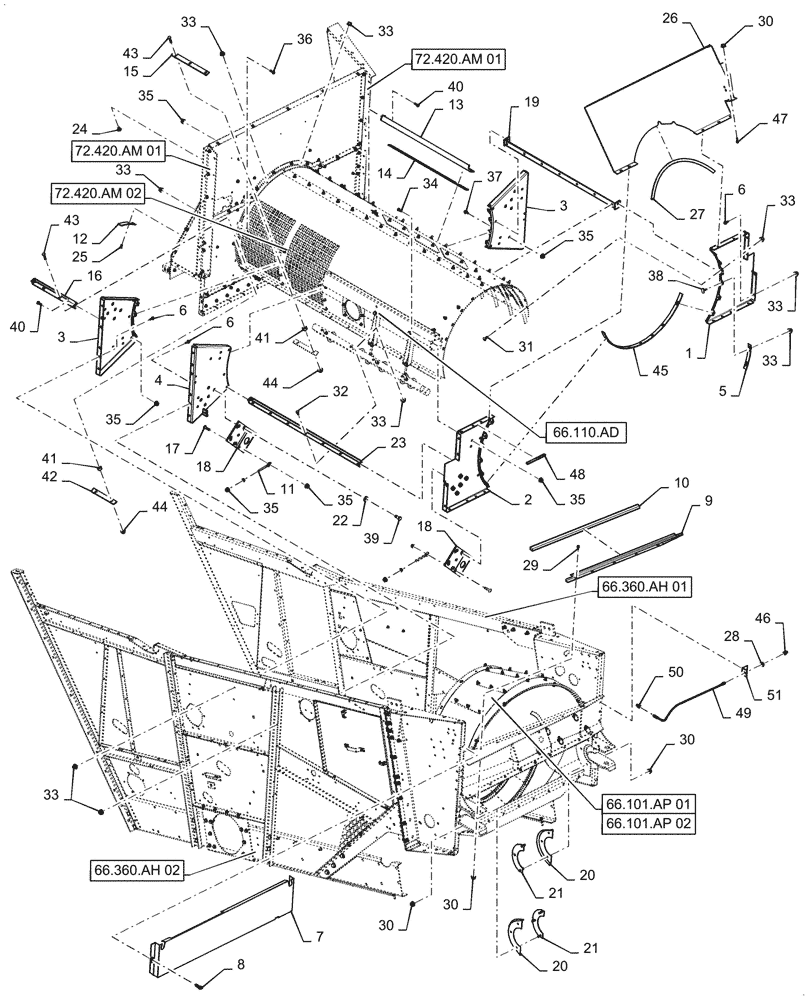

Запчасти Case IH 5088 (66.331.AM) - CAGE, FRONT (66) - THRESHING

1

84180972

SUPPORT

Front, LH

1шт.

2

87301087

BRACKET

Front, RH

1шт.

3

84180970

SUPPORT

Mid, RH

2шт.

4

84136824

BRACKET

Mid, RH

1шт.

5

1318900C1

SUPPORT

Filler, LH Rear

1шт.

6

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

25шт.

7

87721351

SHEET

Front Door Trim

1шт.

8

188029C1

LATCH

Main Drive Shield

2шт.

9

231848A1

RETAINER

Rotor Front

1шт.

10

231849A2

DOOR SEAL,995mm L

1шт.

11

84156112

EYEBOLT

Adjusting

2шт.

12

186797C2

SUPPORT

Filler Strip

1шт.

13

185386C1

SUPPORT

Cage Stiffener, Grate Area

1шт.

14

183323C1

STRAP

Grate

1шт.

15

186785C2

REINFORCEMENT

Bar

1шт.

16

182634C3

SUPPORT

Grate Stiffener, RH

1шт.

17

87698853

CARRIAGE BOLT,Sht Sq Nk, M12 x 50mm, Cl 10.9, Full Thd

2шт.

18

1338041C2

SUPPORT

Concave Anchor

2шт.

19

84161945

STIFFENER

LH

1шт.

20

195202C1

SEAL

Feeder

2шт.

21

87476880

PLATE ASSY.

Seal Retainer

2шт.

22

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

10шт.

23

1324190C1

REINFORCEMENT

Stiffener, RH

1шт.

24

87487056

SERRATED SCREW,M10 x 1.5 x 20mm, Cl 10.9

9шт.

25

87487044

SCREW,Truss Slotted, M10 x 25mm, Cl 10.9

2шт.

26

87685417

SHEET

Filler, Grain Tank to Cage Top

1шт.

27

1309111C1

SEAL,19mm W x 725mm L

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1шт.

29

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

14шт.

30

86507066

FLANGE NUT,M8 x 1.25, Cl 10

21шт.

31

87487071

SERRATED SCREW,M10 x 1.5 x 25mm

17шт.

32

87487059

BOLT

M10 x 25

7шт.

33

86050279

FLANGE NUT,M10 x 1.5, Cl 10

96шт.

34

805-12030

BOLT,Hex, M12 x 30mm, Cl 10.9

10шт.

35

86512497

FLANGE NUT,M12 x 1.75, Cl 10

22шт.

36

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

22шт.

37

87343550

FLANGE BOLT,Hex, M12 x 25mm

3шт.

38

87106338

BOLT

Tee

2шт.

39

87036180

BOLT,Hex, M16 x 35mm, Cl 10.9, Full Thd

10шт.

40

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

41

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

42

186784C2

BAR

Grate Hanger

3шт.

43

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

44

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

6шт.

45

186750C1

SUPPORT

Filler Strip

1шт.

46

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

47

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

48

135370A1

PROTECTION STRIP

Edge Trim

1шт.

49

937781R92

HOSE,3.02mm ID x 686mm L

Grease Line

1шт.

50

219-418

ADAPTER,1/4"-1/8 NPTF

1шт.

51

87742027

BRACKET

Lube Hose

1шт.
