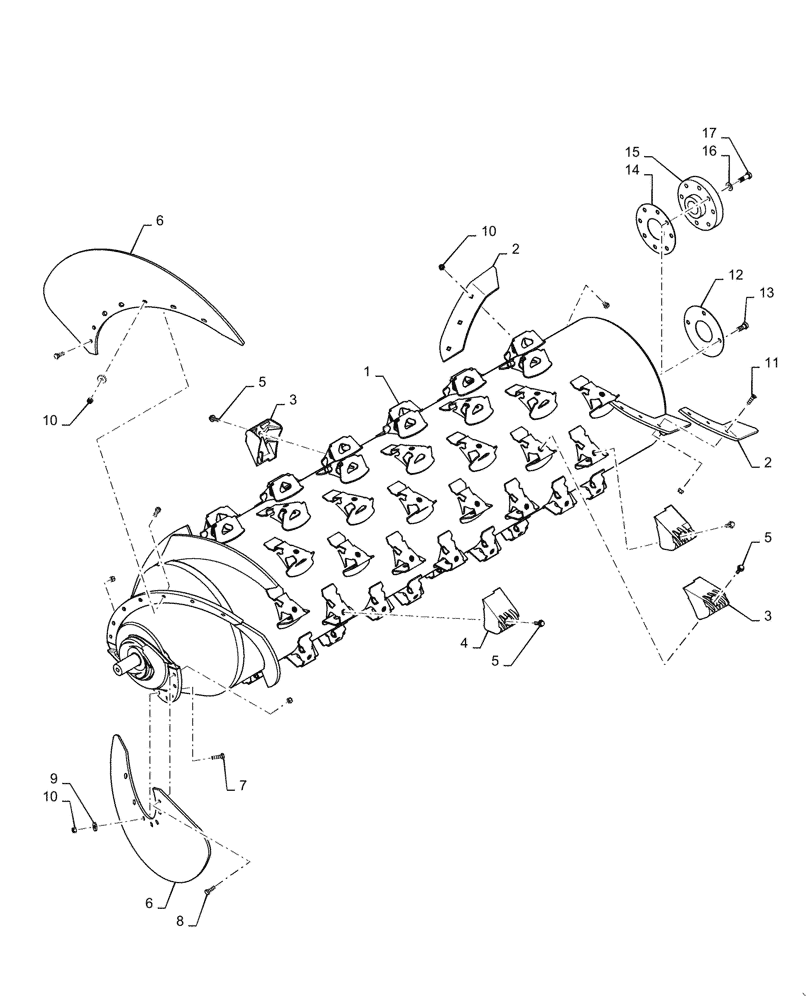

Запчасти Case IH 5088 (66.331.AK[05]) - VAR - 425436 - THRESHING CYLINDER, ROTOR, SMALL TUBE, GRAIN (66) - THRESHING

1

87723449

ROTOR

Small Tube, Grain, Incl 2 - 13

1шт.

2

87544176

STEEL FLIGHT

Rear Kicker

2шт.

3

84317777

RASP BAR

Small Tube, Extended Wear, 10 Degree Non- Spike

50шт.

4

84317775

RASP BAR

Extended Wear W/ Spike, 10 Degree

10шт.

5

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

60шт.

6

87532511

IMPELLER

Rotor Inlet

2шт.

7

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

10шт.

8

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

4шт.

9

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

10

412672

NUT,Hex, M12 x 1.75, Cl 10

20шт.

11

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

M12 x 40mm, 10.9

6шт.

12

NSS

NOT SOLD SEPARAT

Rear Plate, Incl In 1

1шт.

13

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

14

87619363

PLATE

Rotor Load Ring, 8 Bolt

1шт.

15

87619364

COUPLING

HD Rotor Drive 23 Tooth

1шт.

16

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

17

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

Locking, M16 x 95mm, 10.9

8шт.
