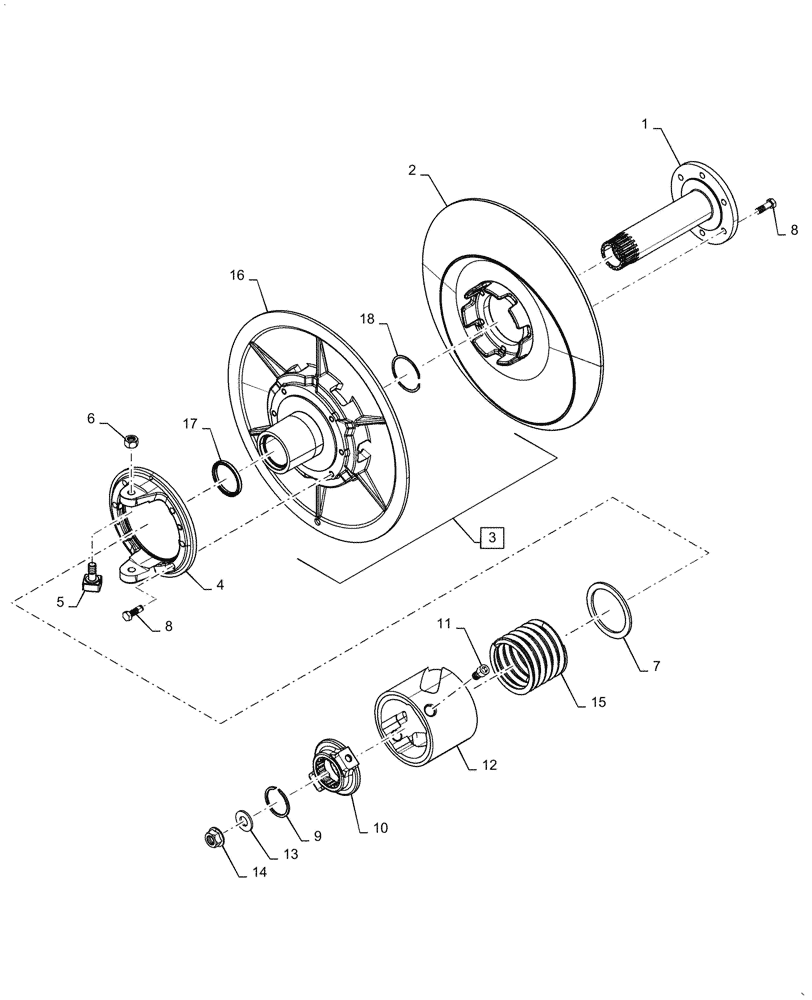

Запчасти Case IH 5088 (66.260.AV[01]) - TORQUE SENSING UNIT PULLEY (66) - THRESHING

1

184489C1

HUB

Fixed Half Pulley

1шт.

2

87399554

PULLEY

Rotor Driven Fixed

1шт.

3

413163A1

PULLEY,546.1mm OD

Rotor Driven Variable, Incl 16 - 18

1шт.

4

411411A1

CAM FOLLOWER

Hub

1шт.

5

87554227

CAMSHAFT BEARING,1-1/2" OD x 2-3/8" OAL, 5/8" - 18

Square Base

2шт.

5

86582880

BEARING,15.9 mm ID x 38.1 mm OD x 60.3 mm

Round Base

2шт.

6

425-1110

NUT,5/8"-18, G5

2шт.

7

188210C91

CAM FOLLOWER

Thrust Bearing

1шт.

8

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

9

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

1шт.

10

411410A1

HUB,60.58mm ID x 137.4mm OD x 42mm L

1шт.

11

194167C1

SCREW,5/8 - 11" x 1"

2шт.

12

413165A1

HUB

Torque Sensing Cam

1шт.

13

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

1шт.

14

1315288C1

FLANGE NUT

Torque Sensing Shaft

1шт.

15

413160A1

SPRING

Rotor Drive

1шт.

16

450621A1

PULLEY

Variable

1шт.

17

193965C92

SEAL

Pulley

3шт.

18

537602R1

RING

Inner Seal

1шт.
