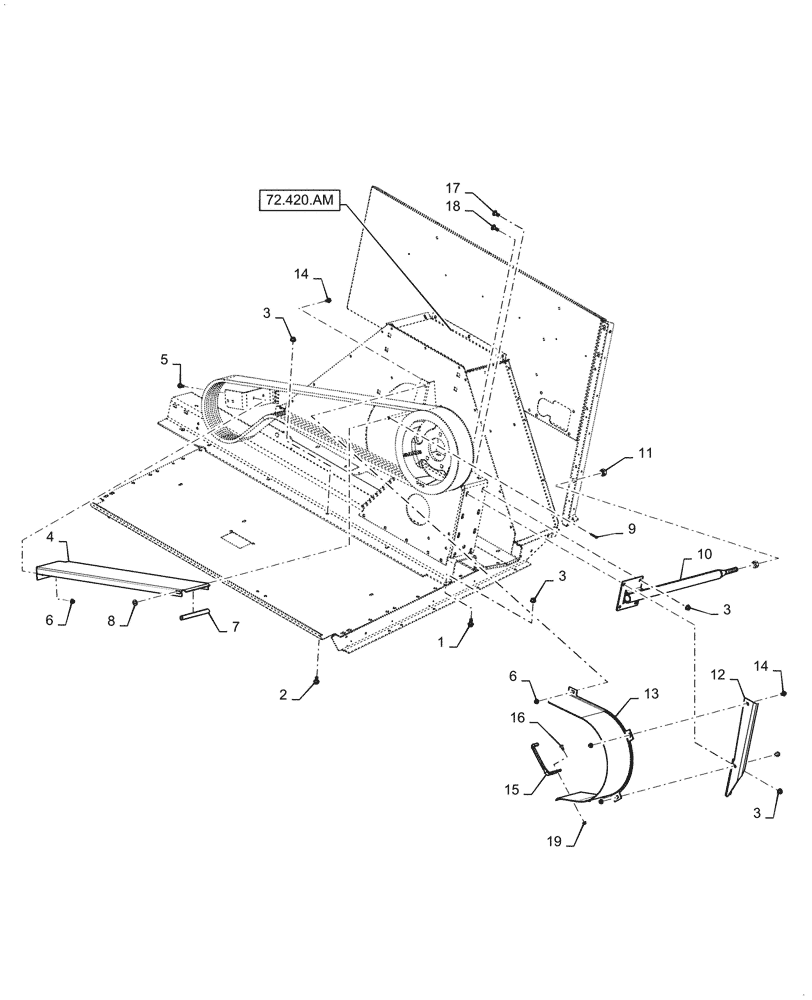

Запчасти Case IH 5088 (66.260.AA[02]) - SEPARATOR DRIVE BELT SHIELD (66) - THRESHING

1

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

2

87343550

FLANGE BOLT,Hex, M12 x 25mm

6шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

14шт.

4

87724598

CHANNEL

Separator Belt Support

1шт.

5

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

7

87677576

HOSE,12.70 mm ID

Separator Belt Channel

1шт.

8

495-11053

WASHER,1/2", SAE

1шт.

9

432-1216

COTTER PIN,3/16" x 1"

1шт.

10

87395015

TUBE,675 mm L

Separator Jackshaft Support

1шт.

11

425-1112

NUT,3/4"-16, G5

2шт.

12

84129118

SUPPORT

Separator Belt Trap

1шт.

13

87393441

SHIELD

Separator Belt Trap

1шт.

14

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

3шт.

15

293817A1

GUIDE

Separator Belt

1шт.

16

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

2шт.

17

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

2шт.

18

87695427

CARRIAGE BOLT,M12 x 35mm, Cl 10.9

2шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
