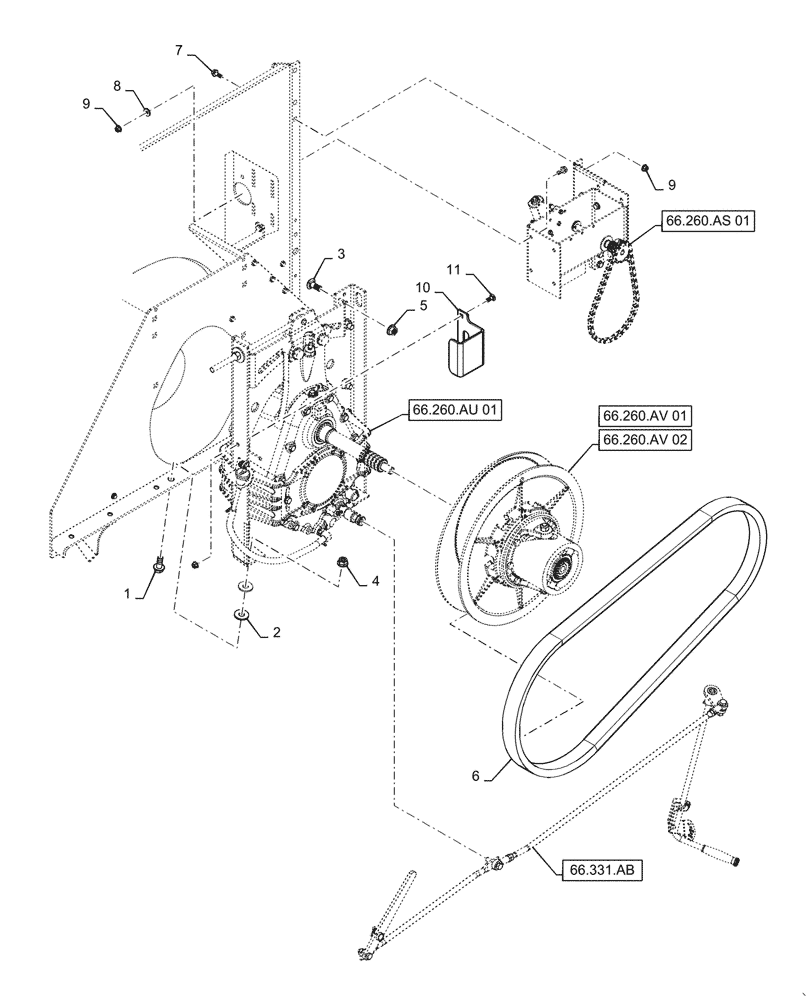

Запчасти Case IH 5088 (66.260.AA[01]) - ROTOR GEARBOX MOUNTING PARTS (66) - THRESHING

1

86978772

FLANGE BOLT,Hex, M16 x 40mm, Cl 10.9, Full Thd

2шт.

2

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

45mm OD x 18mm ID x 4mm

4шт.

3

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

6шт.

4

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

5

86512498

FLANGE NUT,M16 x 2, Cl 10

6шт.

6

84194650

V-BELT,57.2mm W x 2802.57mm L

Rotor Drive HN

1шт.

Class 5

1шт.

6

87714971

V-BELT,76.2mm W x 2790mm L

V-Belt Rotor Drive HQ Inverted 2790mm

1шт.

Class 6/ Class 7 Only

1шт.

7

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

8

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

10

84545630

BRACKET

Dipstick Cover

1шт.

11

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.
