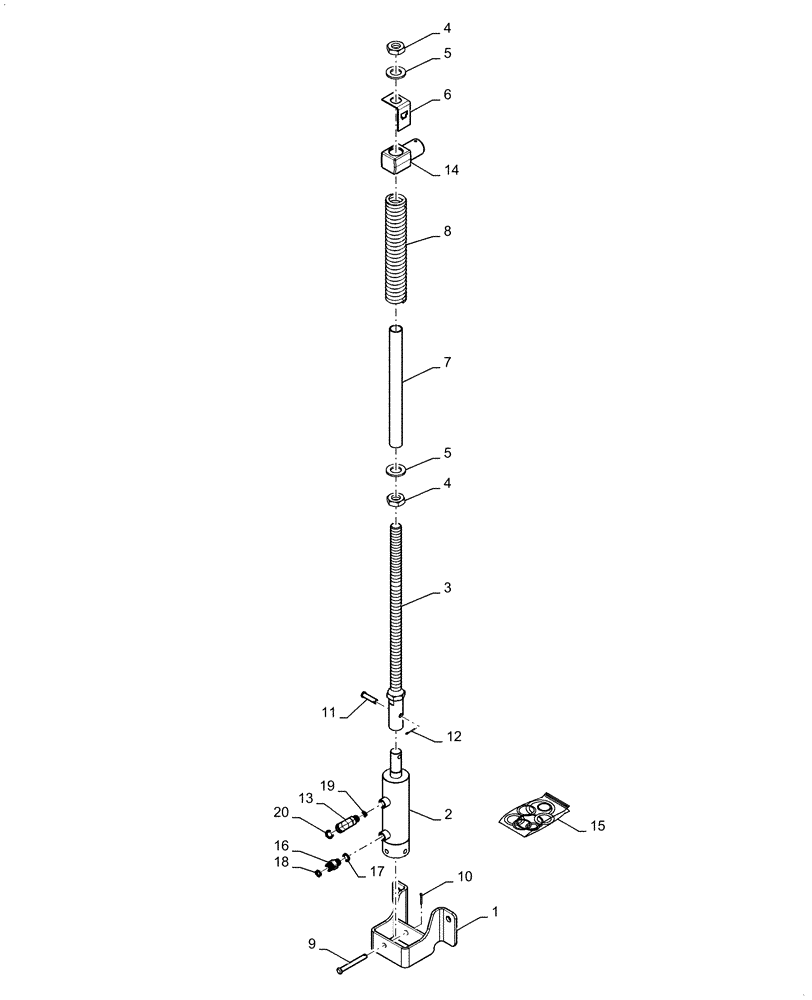

Запчасти Case IH 5088 (60.150.AQ[03]) - FEEDER DRIVE BELT TENSIONER (60) - PRODUCT FEEDING

1

84170096

SUPPORT

Cylinder Anchor

1шт.

2

87710335

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

Feeder Clutch, Incl 15

1шт.

3

87737845

ROD ASSY.

Feeder Drive Tension

1шт.

4

87034489

THIN NUT,Hex, M24, 3mm Pitch, Cl 05

2шт.

5

86511328

WASHER,25mm ID x 44mm OD x 4mm Thk

2шт.

6

87758240

BRACKET

Belt Tension Guide

1шт.

7

84122776

TUBE,24.36 mm ID, 28.58 mm OD, 317.5 mm Length

Tension Rod

1шт.

8

87739619

COIL SPRING

Feeder Belt Clutch

1шт.

9

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

1шт.

10

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

11

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

1шт.

13

87016877

ELBOW,90 Degree, 13/16"-16 x 9/16"-18, Adj, ORFS

Incl 19, 20

1шт.

14

84121816

PIVOT

Feeder Drive Arm

1шт.

15

87364303

SEAL KIT

Feeder Clutch Cylinder

1шт.

16

134713A1

CHECK VALVE,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 17, 18

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
