Запчасти Case IH 5088 (60.150.AQ[01]) - VAR - 425083, 425082, 425081, 425080, 425079 - FEEDER DRIVE, NON-STONE TRAP (60) - PRODUCT FEEDING

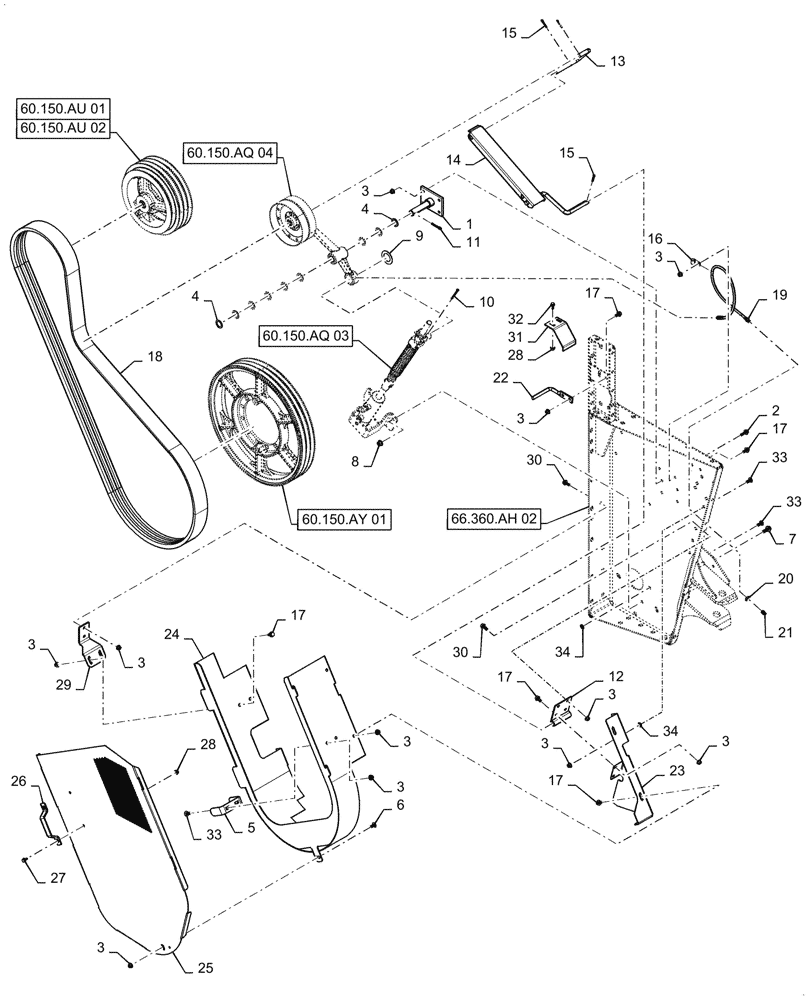

Схема запчастей Case IH 5088 - (60.150.AQ[01]) - VAR - 425083, 425082, 425081, 425080, 425079 - FEEDER DRIVE, NON-STONE TRAP (60) - PRODUCT FEEDING
60.150.au 01
34
17
30
21
3
18
22
14
28
33
4
28
9
32
2
3
17
1
4
3
8
3
12
15
11
5
33
3
7
3
34
30
3
6
27
13
10
17
20
26
25
3
17
3
24
23
17
3
33
16
3
29
31
19
15
60.150.aq 03
60.150.ay 01
60.150.aq 04
66.360.ah 02
60.150.au 02

Артикул

Название

Примечание

Количество

1

87395750

SHAFT ASSY.

Feeder Drive Idler Pivot

1шт.

2

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

3

86050279

FLANGE NUT,M10 x 1.5, Cl 10

23шт.

4

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

9шт.

5

84481537

GUIDE

Drive Belt

1шт.

6

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

1шт.

7

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

9

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1шт.

10

432-1240

COTTER PIN,3/16" x 2 1/2"

1шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

12

87712042

BRACKET

Belt Guide Pivot

1шт.

13

116032A1

HOOK

Belt Retainer

1шт.

14

87377051

BRACKET

Feeder Belt Retainer

1шт.

15

432-1216

COTTER PIN,3/16" x 1"

4шт.

16

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

17

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

9шт.

18

87629602

V-BELT,22.23mm W x 3722.60mm L

1шт.

19

937781R92

HOSE,3.02mm ID x 686mm L

Grease Line

1шт.

20

F53473

LOCK NUT,1/8-27 NPSM

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

87373945

ROD

Drive Belt

1шт.

23

87712046

BRACKET

Support, Belt Guide

1шт.

24

84481535

GUIDE

Feeder Belt

1шт.

25

84133930

COVER ASSY

Drive Belt

1шт.

26

87735697

LATCH

Door Handle

1шт.

27

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

28

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

29

87712058

BRACKET

Support, Rear

1шт.

30

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

31

87742029

SUPPORT

Upper Belt Guide

1шт.

32

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

33

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

5шт.

34

87698854

NUT,M10

3шт.

Выбрано товаров: 34
