Запчасти Case IH 5088 (60.150.AE[03]) - FEEDER DRIVE GEARBOX, STANDARD (60) - PRODUCT FEEDING

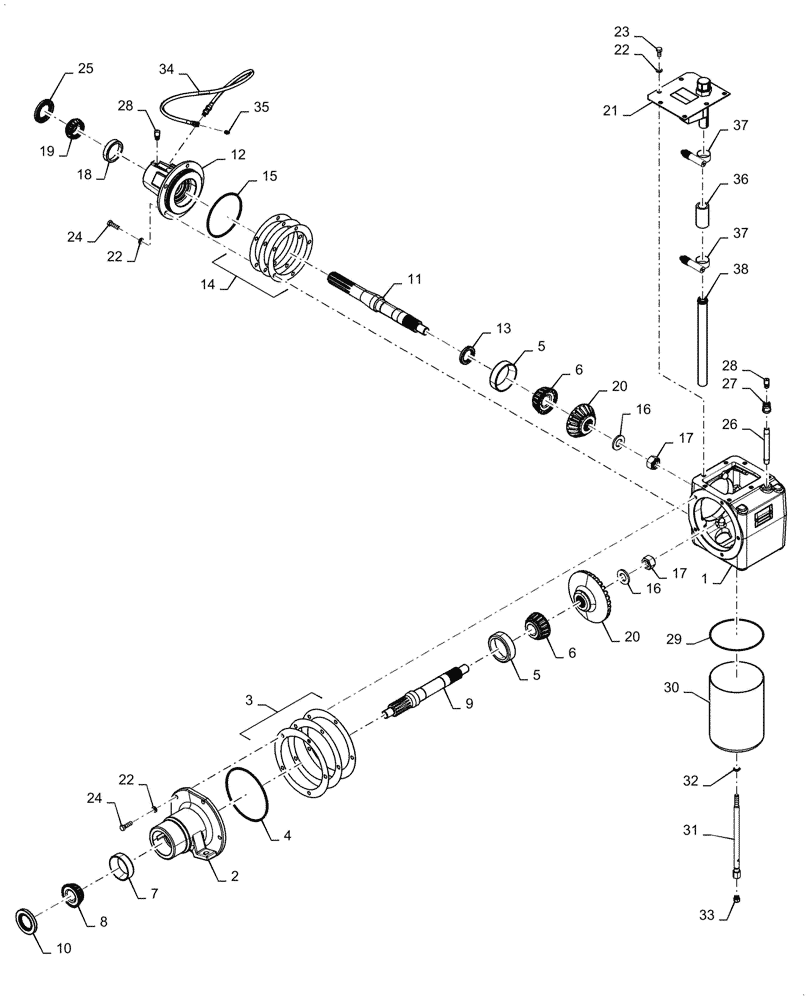

Схема запчастей Case IH 5088 - (60.150.AE[03]) - FEEDER DRIVE GEARBOX, STANDARD (60) - PRODUCT FEEDING
17
30
19
22
20
18
34
28
27
11
37
25
3
9
6
38
33
22
13
10
29
28
32
26
17
2
16
5
4
22
15
8
21
23
7
12
20
16
24
1
24
35
37
31
14
5
36
6

Артикул

Название

Примечание

Количество

1

397128A1

HOUSING

Feeder Drive Gear

1шт.

2

390549A1

HOUSING

Forward Bell, RH

1шт.

3

195485C1

SHIM KIT

Forward Bell Housing, RH

1шт.

4

272712

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

5

57861H

BEARING CUP

Tapered Roller

2шт.

6

390952A1

BEARING CONE,34.92mm ID x 30.16mm W

2шт.

7

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

1шт.

8

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

1шт.

9

191384C2

SHAFT

Output

1шт.

10

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

Output Shaft

1шт.

11

191396C1

SHAFT

Input

1шт.

12

390547A1

HOUSING

Bell, Rear

1шт.

13

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

Input Shaft

1шт.

14

195484C2

SHIM KIT

Rear Bell Housing

1шт.

15

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

16

87613300

WASHER,0.94" ID x 1.75" OD x 0.18" Thk

2шт.

17

185413C1

LOCK NUT

7/8" - 14

2шт.

18

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

20

1315597C1

GEAR SET

Forward Driven, 18T/31T

1шт.

21

416615A1

COVER

Collector, Oil Circulation

1шт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

17шт.

23

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

24

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

25

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

Forward Gear Case Input

1шт.

26

221-1142

PIPE,Nipple, 1/4" NPT x 4 1/2"

1шт.

27

221-1344

COUPLING

Pipe

1шт.

28

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

2шт.

29

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil Filter Case

1шт.

30

242234A1

HOUSING

Oil Filter

1шт.

31

398059A1

SPECIAL BOLT

Center Drain

1шт.

32

14453080

O-RING,0.426" ID x 0.07"

1шт.

33

9672438

PLUG,7/16" - 20 ORB

1шт.

34

1339006C1

TUBE,914 mm L

Grease Line

1шт.

35

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

36

426559A1

HOSE

Oil Circulation

1шт.

37

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

2шт.

38

426552A1

TUBE

Forward Gearcase Circulation

1шт.

Выбрано товаров: 38
