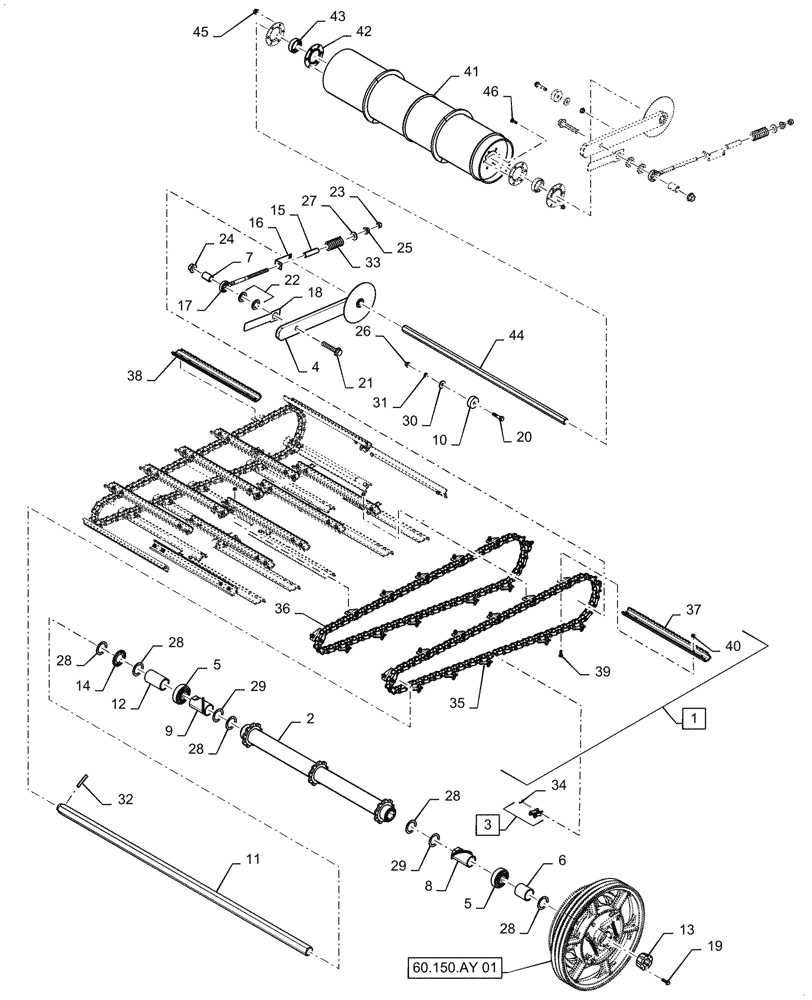

Запчасти Case IH 5088 (60.150.AD[01]) - VAR - 425083, 425082, 425081, 425080, 425079 - CONVEYOR ASSY, NON-STONE TRAP (60) - PRODUCT FEEDING

1

84207192

CHAIN,75 Links x 41.4mm = 3105mm

Conveyor, Serrated Slats, Incl 35 - 40

1шт.

2

84122242

SPROCKET ASSY.,9T

Feeder Conveyor

1шт.

3

1324294C1

LINK,40.893mm Pitch

Connecting, Incl 34

3шт.

4

87687030

ARM ASSY.

Conveyor

2шт.

5

87620467

BALL BEARING,44.48mm Hex x 100mm OD x 42.86mm W

2шт.

6

87740697

SPACER,52.39mm ID x 63.5mm OD x 68.8mm L

Clutch Hub

1шт.

7

87688473

SPACER,21mm ID x 31.75mm OD x 47.7mm L

Arm Bushing

2шт.

8

87751613

SPACER

Cleanout Sprocket, RH

1шт.

9

87751611

SPACER

Cleanout, Sprocket, LH

1шт.

10

87389815

SPACER,13.5mm ID x 57.2mm OD x 20mm L

Feeder Drum Stop

2шт.

11

84126834

SHAFT

Feeder Conveyor, Serial Range: -Y9G001441

1шт.

11

84174008

SHAFT

Feeder Conveyor, Start Serial: Y9G001441

1шт.

12

87751610

SPACER,52.39mm ID x 63.5mm OD x 106.7mm L

Sprocket End

1шт.

13

87728796

HUB

Shaft Hub, Locking

1шт.

14

87557056

NOTCHED DISK

Feeder Speed Pickup

1шт.

15

84147444

SPACER,17.4mm ID x 22.23mm OD x 91mm L

Spring Tensioner

2шт.

16

84128484

BRACKET

Indicator

2шт.

17

84158123

EYEBOLT

Tensioner

2шт.

18

84359856

STRAP

Feeder Side Shield

2шт.

19

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

4шт.

20

84148135

BOLT

Flange Assy

2шт.

21

84163827

BOLT,M20 x 118.9mm OAL, Cl 10.9

2шт.

22

495-82234

WASHER,32.54mm ID x 50.8mm OD x 6.1mm Thk

4шт.

23

392530

NUT,M16, Cl 10

2шт.

24

86512499

FLANGE NUT,M20 x 2.5, Cl 10

2шт.

25

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

26

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

27

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

28

87690483

WASHER,2.03" ID x 2.75" OD x 0.12" Thk

1шт.

29

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

1шт.

30

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

31

492-11050

LOCK WASHER,1/2"

2шт.

32

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

, Serial Range: -Y9G001441

1шт.

32

87016664

PIN,12mm OD x 70mm L, Coiled

, Start Serial: Y9G001441

1шт.

33

84272052

SPRING

Compression, Conveyor Tensioning

2шт.

34

1329837C2

PIN,2.63mm OD

Connecting Link

6шт.

35

118661A1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

2шт.

36

1989529C1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

1шт.

37

84148076

SLAT

Conveyor, RH

12шт.

38

84148074

SLAT

Conveyor, LH

12шт.

39

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

96шт.

40

84207195

NUT,M10 x 1.5

96шт.

41

84299758

DRUM,241.3mm OD x 1091.6mm L

Incl 46

1шт.

42

87667404

FLANGED BEARING

6 Bolt

4шт.

43

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

44

87323562

SHAFT

Hex

1шт.

45

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.

46

87674764

BOLT

Drum

12шт.
