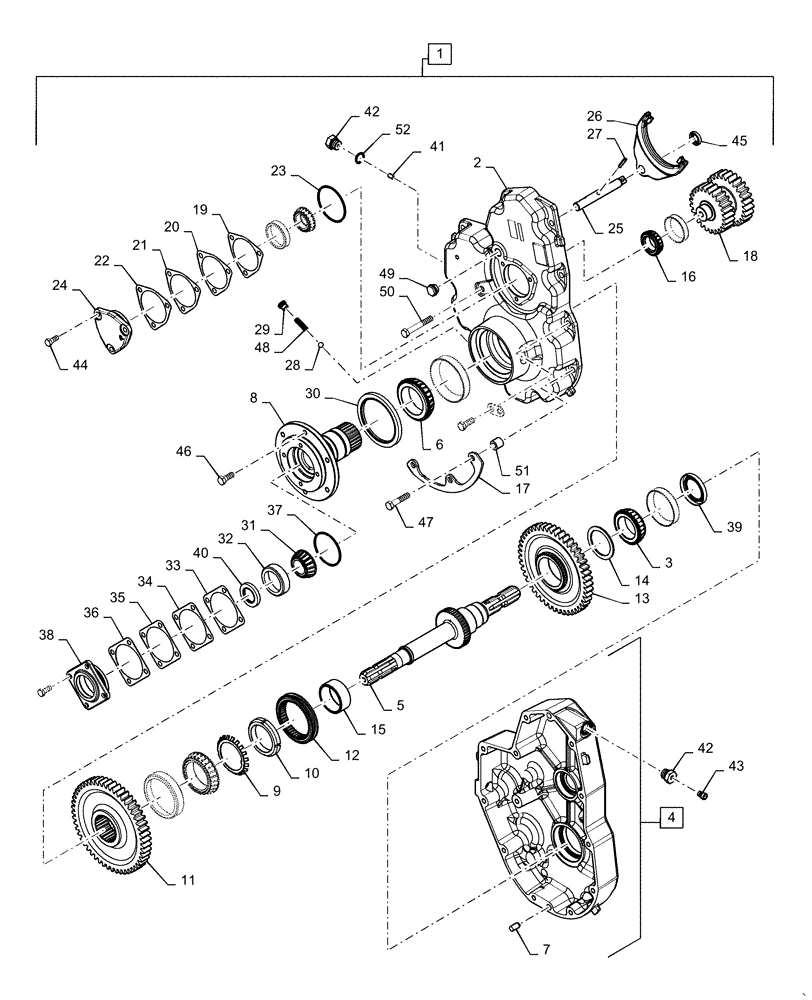

Запчасти Case IH 5088 (60.120.AR) - VAR - 425126, 425087, 425085, 425082, 425080 - GEARBOX, HEADER, 2-SPEED (60) - PRODUCT FEEDING

1

87751887

GEARBOX ASSY

Two Speed Header Drive, Incl 2 - 52

1шт.

1

87751887C

CORE-GEARBOX

1шт.

1

87751887R

REMAN-GEARBOX

1шт.

2

87569765

COVER

Two Speed Header Drive

1шт.

3

87555831

BEARING ASSY,55mm ID x 90mm OD x 23mm W

2шт.

4

87569766

COVER

Housing, Incl 7

1шт.

5

87719076

SHAFT ASSY.

Output

1шт.

6

87525945

BEARING ASSY,70mm ID x 110mm OD x 26mm W

4шт.

7

837-12025

DOWEL,M12 x 25

2шт.

8

87629126

SHAFT

Input

1шт.

9

55-2014

LOCK WASHER

TW-114

1шт.

10

54-2014

BEARING LOCK NUT

2.7559" ID

1шт.

11

87568819

GEAR

52 Tooth

1шт.

12

87319310

COLLAR

Hi-Low Shift

1шт.

13

87568821

GEAR

47 Tooth, Driven

1шт.

14

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

82.3mm OD x 63.5mm ID x 3.16mm

1шт.

15

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

16

87354344

BEARING ASSY,34.925 mm ID x 65.088 mm OD x 18.034 mm

4шт.

17

84195725

PLATE

Support

1шт.

18

87319330

SHAFT

Counter, 25 Tooth/ 26 Tooth

1шт.

19

87319333

SHIM

Bearing Case, 0.0765mm

1шт.

20

87319334

SHIM

Bearing Case, 0.127mm

1шт.

21

87319335

SHIM

Bearing Case, 0.178mm

1шт.

22

87319338

SHIM

Bearing Case, 0.762mm

1шт.

23

18438

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

24

84230061

COVER,51.8 mm ID x 80.67 mm OD x 17, 12 mm

Countershaft Bearing

1шт.

25

87319340

SHIFT RAIL

Hi-Low

1шт.

26

87708105

SHIFTER FORK

Fork, Hi-Low

1шт.

27

38-21622

PIN,6.35mm OD x 34.92mm L, Coiled

1шт.

28

211-1014

BALL,7/16" Dia

1шт.

29

86598044

PLUG,Hex, M14 x 1.5 ORB

1шт.

30

87319308

OIL SEAL

133.4mm OD x 19.05mm ID x 9.5mm

1шт.

31

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

1шт.

32

131312C1

BEARING CUP

72.258mm OD x 19.84mm

1шт.

33

87319317

SHIM

Bearing Cage, 0.0765mm

1шт.

34

87319318

SHIM

Bearing Cage, 0.127mm

1шт.

35

87319319

SHIM

Bearing Cage, 0.178mm

1шт.

36

87319322

SHIM

Bearing Cage, 0.762mm

1шт.

37

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

38

87319316

CAGE

Output Shaft Bearing

1шт.

39

87319314

OIL SEAL

76.3mm OD x 52.4mm ID x 9.5mm

1шт.

40

1990325C1

SEAL,34.85mm ID x 57.25mm OD x 8mm Thk

Cross Shaft, 57.150mm OD x 34.85mm ID x 8mm

1шт.

41

87108781

PLUG

Magnetic, M22

1шт.

42

87520834

PLUG

Fill, Hex Head ORB M22 x 1.5 -6H Thread, Incl 52

1шт.

43

219-433

BREATHER,1/8"-27, Short

1шт.

44

87015733

BOLT,M10 x 1.5 x 31.58mm, Cl 10.9

M10 x 25mm, 10.9

7шт.

45

87319344

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

31.85mm OD x 19.05mm ID x 6.35mm

1шт.

46

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

8шт.

47

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

3шт.

48

295537A1

SPRING

Detent Ball

1шт.

49

87524452

SIGHTGLASS

M20 x 1.5

4шт.

50

86634393

BOLT,Hex, M12 x 80mm, Cl 10.9

1шт.

51

84183365

SPACER

Spring Tensioner

2шт.

52

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
