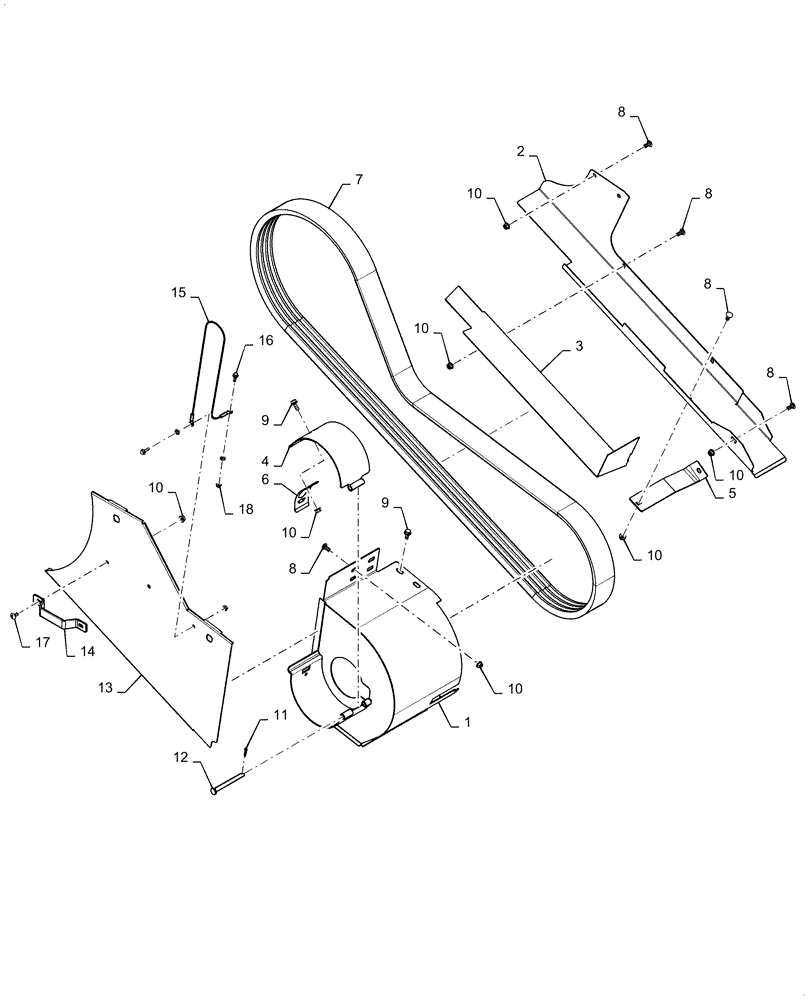

Запчасти Case IH 5088 (60.120.AI[04]) - VAR - 425126, 425087, 425085 - HEADER DRIVE, STONE TRAP, 2-SPEED (60) - PRODUCT FEEDING

1

87720873

SHIELD

Belt, Lower

1шт.

2

84154692

COVER ASSY

Feeder Drive, 54"

1шт.

3

87720877

COVER ASSY

Belt, 54"

1шт.

4

87753756

SHIELD

Jackshaft, RH Upper

1шт.

5

84154100

BRACKET

Header Drive

1шт.

6

86638316

LATCH

Shield

1шт.

7

87332159

BELT,13.24 mm W

Header Drive, Rock Trap

1шт.

8

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

9шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

11

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

12

86605625

CLEVIS PIN,M10 x 110

1шт.

13

87754565

COVER ASSY

Feeder Drive, 54"

1шт.

14

87686906

LATCH

Door Handle

1шт.

15

132657A2

CABLE

Reverser Shield Tether

1шт.

16

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

17

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

2шт.

18

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.
