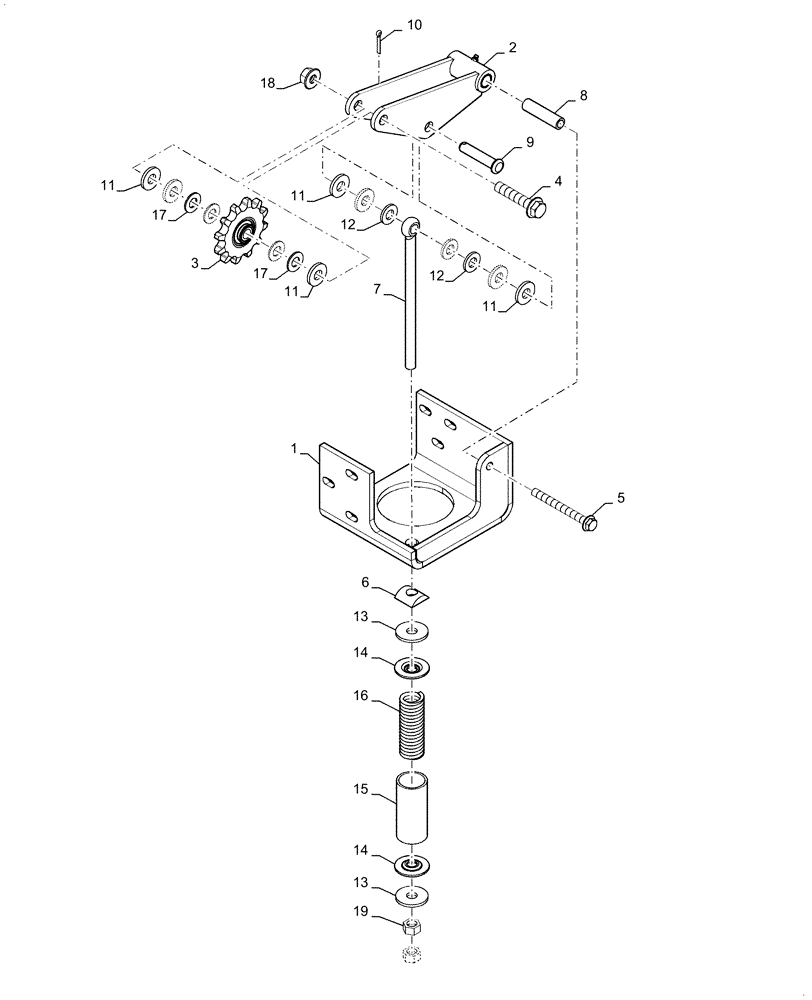

Запчасти Case IH 5088 (60.112.AA[03]) - VAR - 425126, 425125, 425088, 425087, 425086, 425085, 425084 - STONE TRAP DRIVE TENSIONER (60) - PRODUCT FEEDING

1

87755510

SUPPORT ASSY.

Idler Arm Mount

1шт.

2

87755503

ARM ASSY.

Idler

1шт.

3

87477658

SPROCKET

12T, 16mm Bore

1шт.

4

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

1шт.

5

87698848

FLANGE BOLT,M12 x 120mm, Cl 10.9

1шт.

6

390870A1

PIVOT

Idler Bolt

1шт.

7

87578627

EYEBOLT

Idler

1шт.

8

87755999

BUSHING

Idler Pivot

1шт.

9

439-11048

HEADED PIN,5/8" x 3"

1шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

11

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

7шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

3шт.

13

495-81030

WASHER,21/32" x 2" x .179"

2шт.

14

394120A1

SPRING WASHER

Formed, Feeder Idler

2шт.

15

390869A1

SPACER,40.96mm ID x 48.3mm OD x 105mm L

Adjusting Spring Bolt

1шт.

16

390872A1

SPRING

Compression

1шт.

17

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

4шт.

18

87016581

FLANGE NUT,M16 x 2, CI 10

1шт.

19

100020

NUT,M16 x 2.0, Cl 8

2шт.
