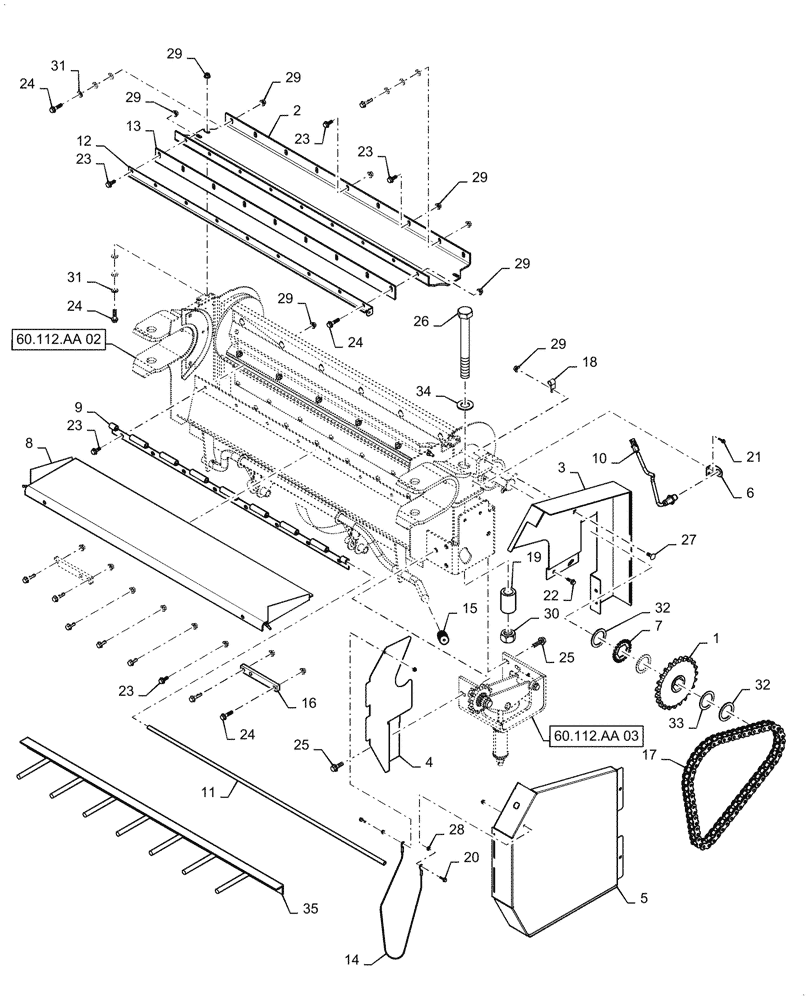

Запчасти Case IH 5088 (60.112.AA[01]) - VAR - 425126, 425125, 425088, 425087, 425086, 425085, 425084 - STONE TRAP (60) - PRODUCT FEEDING

1

87674272

SPROCKET ASSY.,23T

Beater

1шт.

2

87577310

COVER

Beater Housing

1шт.

3

84128119

SHEET METAL

Backing Shield

1шт.

4

87755523

SHEET METAL

Front Shield

1шт.

5

84128122

SHEET METAL

Cover Shield

1шт.

6

87674299

BRACKET

Transducer

1шт.

7

87557056

NOTCHED DISK

Feeder Speed Pickup

1шт.

8

87602131

DOOR

Feeder

1шт.

9

193611C2

HINGE

Feed Plate

1шт.

10

245193C2

SENSOR

Speed

1шт.

11

175931C1

ROD

Feed Door

1шт.

12

87720413

SUPPORT

Feeder Top Seal

1шт.

13

634248R2

SEAL,55mm W x 1175.96mm L

Feeder

1шт.

14

132657A2

CABLE

Reverser Shield Tether

1шт.

15

86995153

HANDLE

Grab

1шт.

16

87709107

SPACER

Rock Trap

2шт.

17

47667739

CHAIN,Roller, 54 Links x 25.4mm = 1371.6mm L

1шт.

18

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

19

87499320

SPACER,31.8mm ID x 50.8mm OD x 75mm L

Feeder Retainer Bolt

2шт.

20

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

21

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

2шт.

22

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

24шт.

24

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

14шт.

25

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

6шт.

26

87497922

BOLT,Hex, M30 x 260mm, Cl 10.9

2шт.

27

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

28

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

29

86050279

FLANGE NUT,M10 x 1.5, Cl 10

36шт.

30

87752066

NUT

M30

2шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

32

87690483

WASHER,2.03" ID x 2.75" OD x 0.12" Thk

1шт.

33

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

1шт.

34

86511329

WASHER,31mm ID x 56mm OD x 4mm Thk

2шт.

35

1320776C1

SUPPORT

Rock Trap Finger Grate

1шт.
