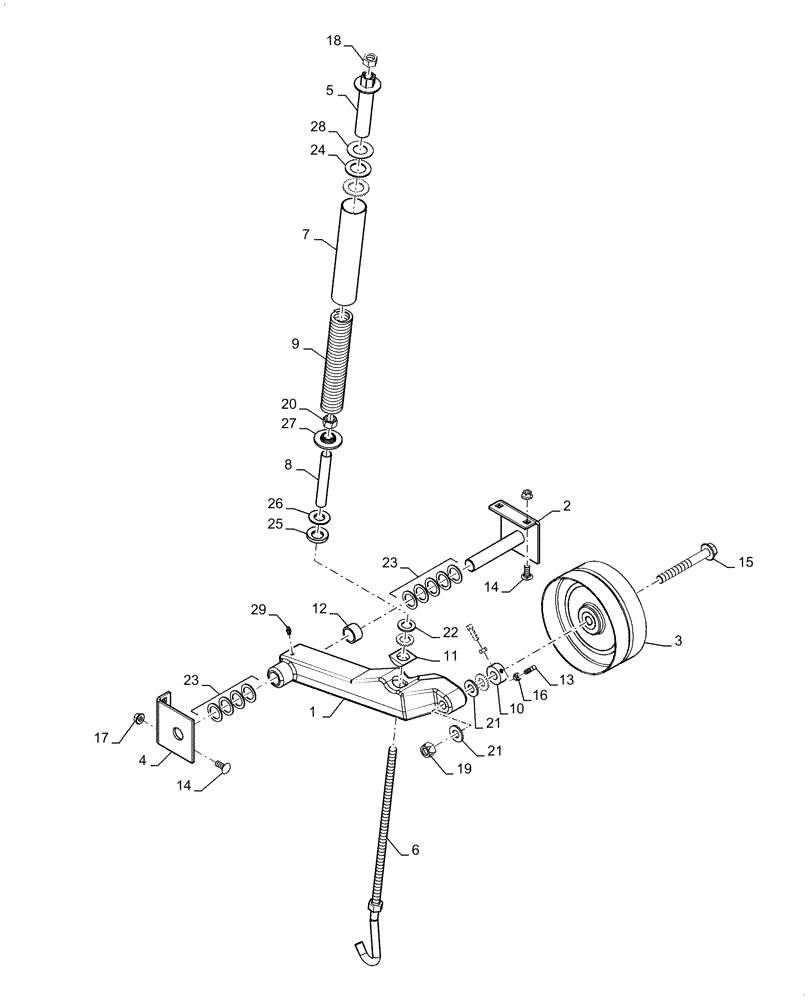

Запчасти Case IH 5088 (60.110.AT) - PIVOT IDLER, HEADER DRIVE (60) - PRODUCT FEEDING

1

87653936

ARM

Header Drive Idler

1шт.

2

87653934

SHAFT ASSY.,25.4mm OD x 147mm L

Idler Pivot

1шт.

3

176579C1

IDLER

Double Row Belt

1шт.

4

87653932

SUPPORT

Angle

1шт.

5

87653940

HOUSING ASSY.

Tensioner

1шт.

6

87653938

LATCH HOOK

Idler Tensioner

1шт.

7

389973A2

TUBE,44.32 mm ID, 47.63 mm OD, 232 mm Length

Pulley

1шт.

8

87706764

SLEEVE

Jackshaft Tensioner

1шт.

9

389972A2

SPRING

Compression, Pulley

1шт.

10

87653930

DRIVE BUSHING

2° Bevel

1шт.

11

413984A1

PIVOT

Rock Trap Idler Bolt

1шт.

12

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

1шт.

13

87656135

SET SCREW,Sq Hd, M8 x 25mm, Cup Pt

2шт.

14

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

15

87028051

BOLT,Hex Flg, M16 x 130, 10.9

1шт.

16

824-1408

NUT,M8 x 1.25, Cl 10

2шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

18

100020

NUT,M16 x 2.0, Cl 8

1шт.

19

86512555

NUT,M16 x 2, Cl 10

1шт.

20

87653929

NUT

Brass, M16 x 2

1шт.

21

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

3шт.

22

87016606

WASHER,20mm ID x 34mm OD x 3mm Thk

2шт.

23

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1шт.

24

895-30105

WASHER,30mm ID x 50mm OD x 2.5mm Thk

2шт.

25

416749A1

WASHER

Lower

1шт.

26

416747A1

WASHER

Upper

1шт.

27

389974A1

SPRING WASHER

Guide

1шт.

28

413528A1

WASHER,26.98mm ID x 50.8mm OD x 1.58mm Thk

Slip

1шт.

29

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
