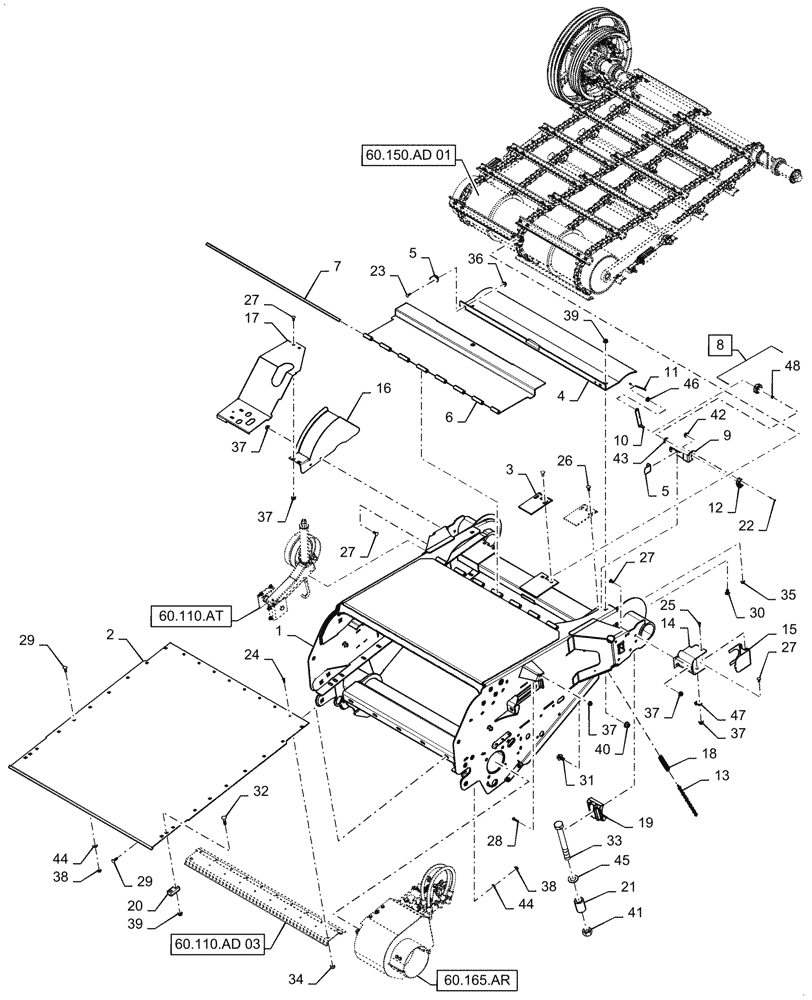

Запчасти Case IH 5088 (60.110.AD[01]) - VAR - 425083, 425082, 425081, 425080, 425079 - STANDARD FEEDER, NON-STONE TRAP (60) - PRODUCT FEEDING

1

87545025

FEEDER

Housing, 60"

1шт.

2

87727365

SHEET ASSY.

Feeder Floor, 60"

1шт.

2

87535463

SHEET

Feeder Floor, Perforated, 60"

1шт.

3

87748011

STRIPPER

Feeder Pivot

3шт.

4

84261477

COVER ASSY

Feeder Top

1шт.

5

84215095

ANGLE

Feeder Door Stop

2шт.

6

87666923

DOOR

Feeder Top, Serial Range: -Y9G002418

1шт.

6

84215091

DOOR

Feeder Top, Start Serial: Y9G002418

1шт.

7

87666924

ROD

Hinge

1шт.

8

87362420

MOUNT

Sensor, Incl 48

1шт.

9

84127177

BRACKET

Feeder Sensor

1шт.

10

84538095

SHAFT

Position Sensor

1шт.

11

87720415

CONNECTING LINK

Feeder Sensor

1шт.

12

87330286

SENSOR

Position

1шт.

13

167570C1

CHAIN,203.2mm L

Platform Finger Stop

2шт.

14

87754319

BRACKET

Feeder Speed Sensor

1шт.

15

87618166

SHIELD

Feeder Speed Sensor

1шт.

16

87712040

COVER ASSY

Feeder Drive, 60"

1шт.

17

87474735

SHIELD

Feeder Drive, 60"

1шт.

18

635503R1

SPRING,148.8mm Free Length

Pedal Return

2шт.

19

87489758

RETAINER

Feeder Pivot

2шт.

20

87709918

SPACER

Feeder Floor

2шт.

21

87499320

SPACER,31.8mm ID x 50.8mm OD x 75mm L

Feeder Retaining Bolt

2шт.

22

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

23

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

3шт.

24

87015849

SCREW,Phillips Drive, Flat HD, M6 x 20mm, Cl 5.8

8шт.

25

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

2шт.

26

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

6шт.

27

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

9шт.

28

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

29

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

21шт.

30

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

2шт.

31

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

2шт.

32

87698853

CARRIAGE BOLT,Sht Sq Nk, M12 x 50mm, Cl 10.9, Full Thd

4шт.

33

87497922

BOLT,Hex, M30 x 260mm, Cl 10.9

2шт.

34

353308

NUT,M6 x 1.0, Cl 8

8шт.

35

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

36

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

37

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

38

86050279

FLANGE NUT,M10 x 1.5, Cl 10

21шт.

39

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

40

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

41

87752066

NUT

M30

2шт.

42

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

43

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

44

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

21шт.

45

86511329

WASHER,31mm ID x 56mm OD x 4mm Thk

2шт.

46

9821714

CLIP

Rod End

2шт.

47

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

1шт.

48

86509761

BUSHING

Position Sensor

1шт.
