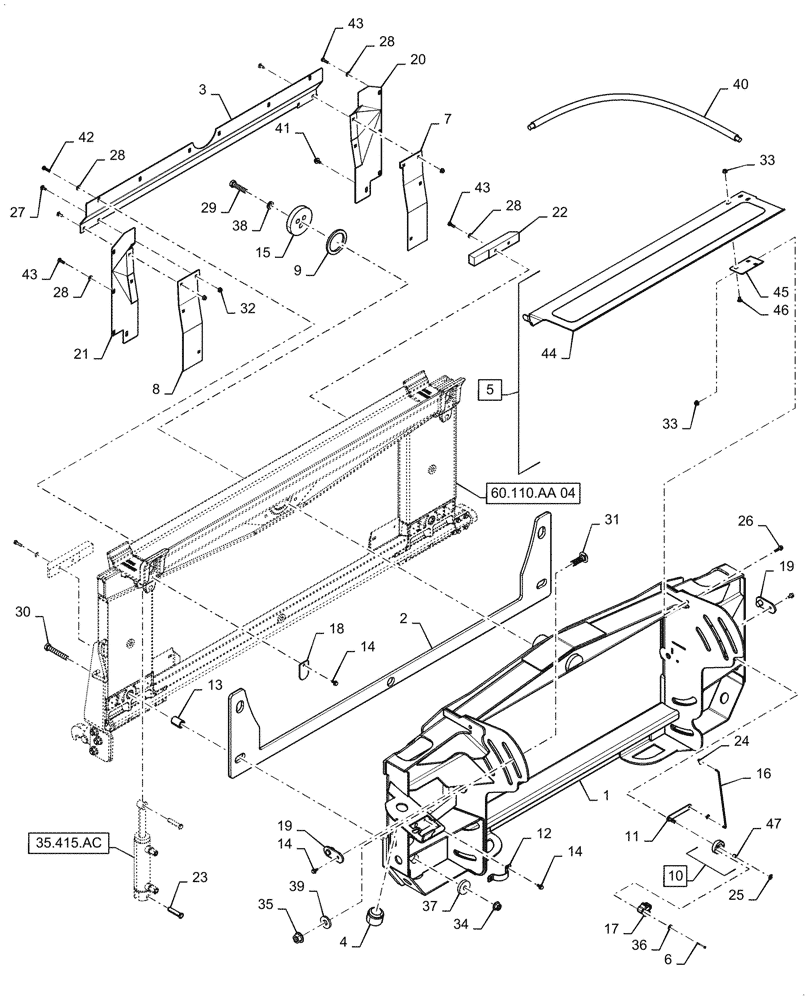

Запчасти Case IH 5088 (60.110.AA[01]) - VAR - 425088 - 425083 - FEEDER ADAPTER (60) - PRODUCT FEEDING

1

47386238

FRAME

Feeder, Half, Lateral Tilt

1шт.

2

84392517

WEAR STRIP

Sheet

1шт.

3

87658628

DEFLECTOR

Crop Front

1шт.

4

87105683

CAP

Protection

1шт.

5

87312135

SHEET ASSY.

Top, Incl 33, 44 - 46

1шт.

6

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

7

84158878

DEFLECTOR

RH, Crop Front

1шт.

8

84158872

DEFLECTOR

LH, Crop Front

1шт.

9

86995542

THRUST WASHER,77.5mm ID x 101.6mm OD x 7.8mm Thk

1шт.

10

87362420

MOUNT

Link, Incl 47

1шт.

11

87643243

SHAFT

Link

1шт.

12

87107105

U-BRACKET

Hose Mount

1шт.

13

87107672

SPACER,20.64mm ID x 30.16mm OD x 42mm L

2шт.

14

87681207

BOLT,M8 x 24.1mm, Cl 10.9

5шт.

15

87283209

RETAINING PLATE

Center

1шт.

16

87643245

LINK

Connecting

1шт.

17

87330286

SENSOR

Position

1шт.

18

87312141

PLATE

Latch

1шт.

19

87106719

BRACKET

Link

2шт.

20

87658627

DEFLECTOR

RH, Crop Front

1шт.

21

87658626

DEFLECTOR

LH, Crop Front

1шт.

22

87693080

PLATE

Strip Off

2шт.

23

87312143

PIN,14mm OD x 68.5mm L

2шт.

24

9821714

CLIP

Rod End

2шт.

25

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

26

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

27

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

29

11119231

BOLT,M16 x 75mm, Cl 10.9

3шт.

30

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

2шт.

31

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

14шт.

32

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

33

87681210

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

34

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

35

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

36

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

37

913347

WASHER,M17 x 56mm OD x 11mm Thk

2шт.

38

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

39

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

14шт.

40

87742285

WIRE HARNESS

Feeder Tilt Adapter

1шт.

41

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

2шт.

42

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

43

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

44

47781464

SHEET

Top

1шт.

45

47788748

BRACKET

Top Sheet

1шт.

46

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

3шт.

47

86509761

BUSHING

Position Sensor

1шт.
