Запчасти Case IH 5088 (55.785.AS[02]) - VAR - 722611 - MOISTURE METER (55) - ELECTRICAL SYSTEMS

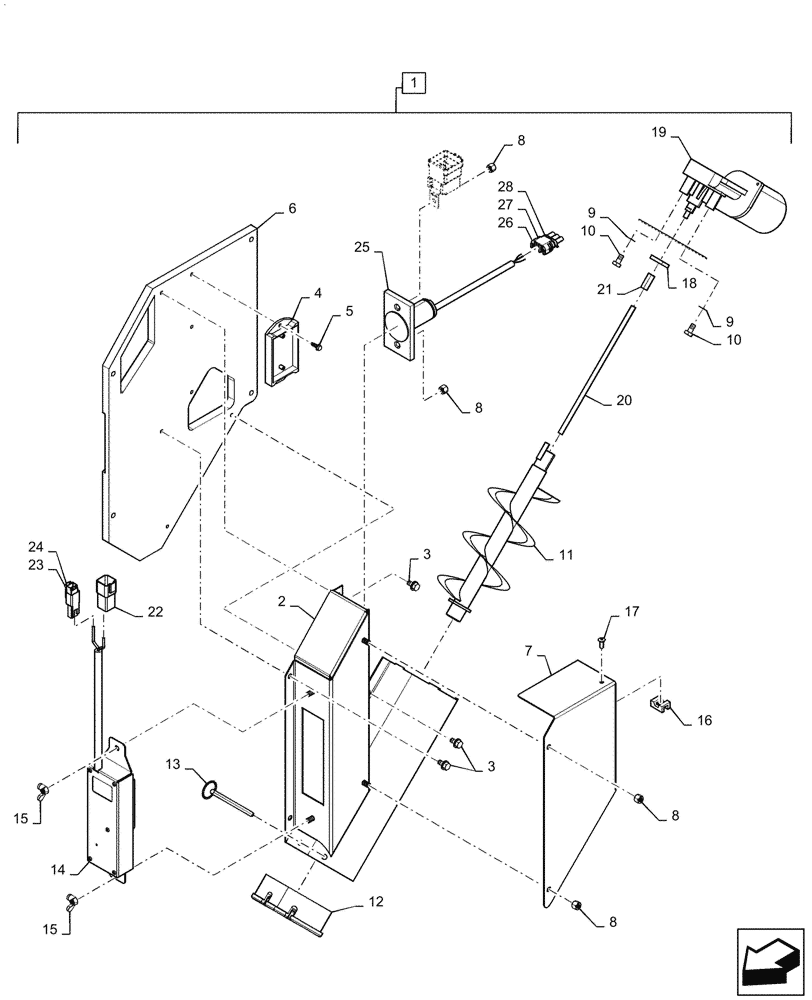

Схема запчастей Case IH 5088 - (55.785.AS[02]) - VAR - 722611 - MOISTURE METER (55) - ELECTRICAL SYSTEMS
3
25
28
6
19
8
9
7
4
2
24
14
17
13
1
3
23
11
15
8
22
8
9
16
12
10
27
21
20
26
18
10
15
8
5

Артикул

Название

Примечание

Количество

1

87387779

SENSOR

Moisture, Incl 2 - 28, Serial Range: -YAG003811

1шт.

1

84295601

SENSOR

Moisture, Incl 2 - 28, Start Serial: YAG003811

1шт.

2

84235763

HOUSING

By-Pass

1шт.

3

86625162

SELF-TAP SCREW,HWH, 1/4" - 14 x 1/2"

5шт.

4

84435831

PRINTED CIRCUIT BOAR

Control

1шт.

5

280-2448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

6

363860A1

SUPPORT

Spacer Block

1шт.

7

84235762

COVER

By-Pass

1шт.

8

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

9

493-41026

LOCK WASHER,Ext Tooth, 1/4"

3шт.

10

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

3шт.

11

364194A1

AUGER

Metering, LH

1шт.

12

84435830

BLOCK

Retaining

1шт.

13

84435829

PIN,6.35mm OD x 114.3mm L

2шт.

14

47855244

SENSOR

Grain Moisture

1шт.

15

84814892

WING NUT,M6 x 1.0

2шт.

16

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Cable Tie

1шт.

17

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

18

364845A1

GUIDE

Metering Auger Drive

1шт.

19

364837A1

MOTOR, ELECTRIC

Wiper

1шт.

20

364843A1

MOUNTING ROD

Threaded

1шт.

21

368947A1

COUPLING,1/4" - 20

1шт.

22

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

2шт.

23

325178A1

CONNECTOR, ELEC

2 Pin

1шт.

24

225125C1

SEAL

Terminal, Green

2шт.

25

84435833

SWITCH ASSY

Proximity Sensor

1шт.

26

87418312

SEAL

Terminal, Violet

3шт.

27

245484C1

ELEC CONNECTOR,3 Pin

1шт.

28

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

3шт.

Выбрано товаров: 29
