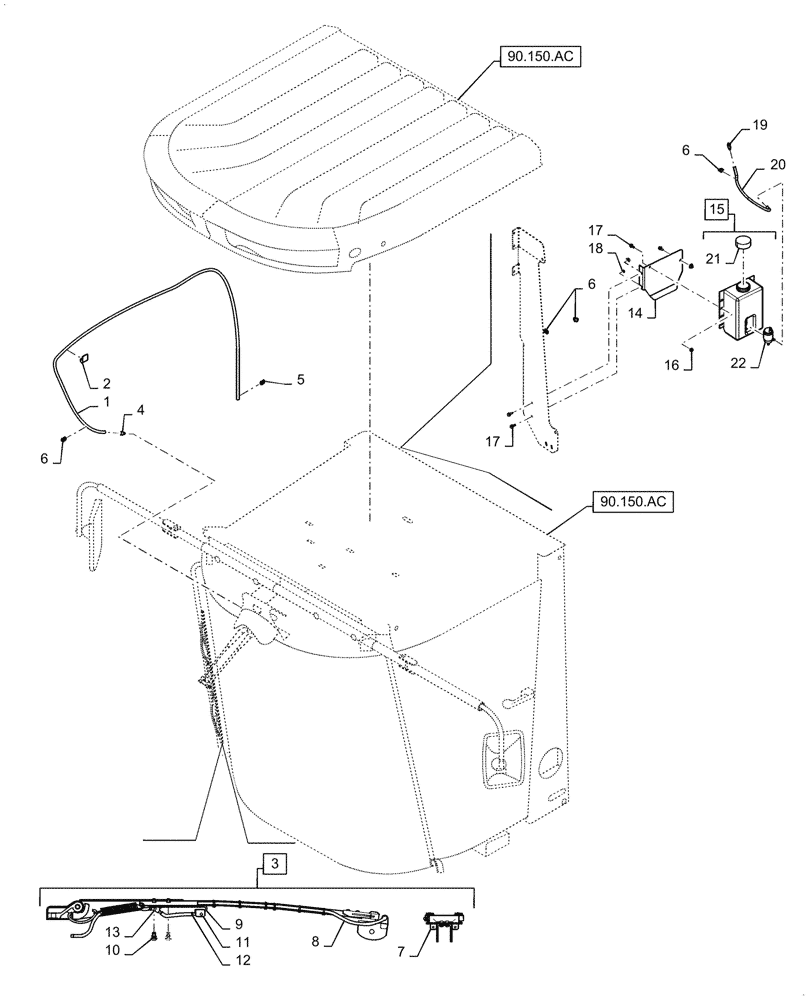

Запчасти Case IH 5088 (55.518.AS) - WINDSHIELD WASHER ASSY (55) - ELECTRICAL SYSTEMS

1

31-2582

HOSE

Windshield Washer

1шт.

2

245854A1

CLIP

Hose, Adhesive

4шт.

3

87281666

WINDSHIELD WASHER

Assy, Incl 7 - 13

1шт.

4

31-2364

FITTING

Reducer, Black Nylon

1шт.

5

58556C1

CABLE TIE

Strap

2шт.

6

702093C1

CABLE TIE

Strap

4шт.

7

87282392

HOLDER

Nozzle Saddle

1шт.

8

87282393

HOSE

Rubber, Windshield Washer

1шт.

9

87282394

ARM

Nozzle Lock Bar

1шт.

10

87282395

RIVET

Snap

2шт.

11

87282396

NOZZLE CAP

Single

1шт.

12

87282397

HOSE

Rubber

1шт.

13

87282398

FITTING

"Y"

1шт.

14

87447938

SUPPORT

Washer Tank

1шт.

15

87014923

RESERVOIR, WINDSHIEL

Incl 21, 22

1шт.

16

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

19

84037530

VALVE

One Way

1шт.

20

31-2423

HOSE,0.19" ID x 15.00"

Washer

1шт.

21

87439461

CAP

Washer Tank

1шт.

22

BN98901

PUMP

Washer

1шт.
