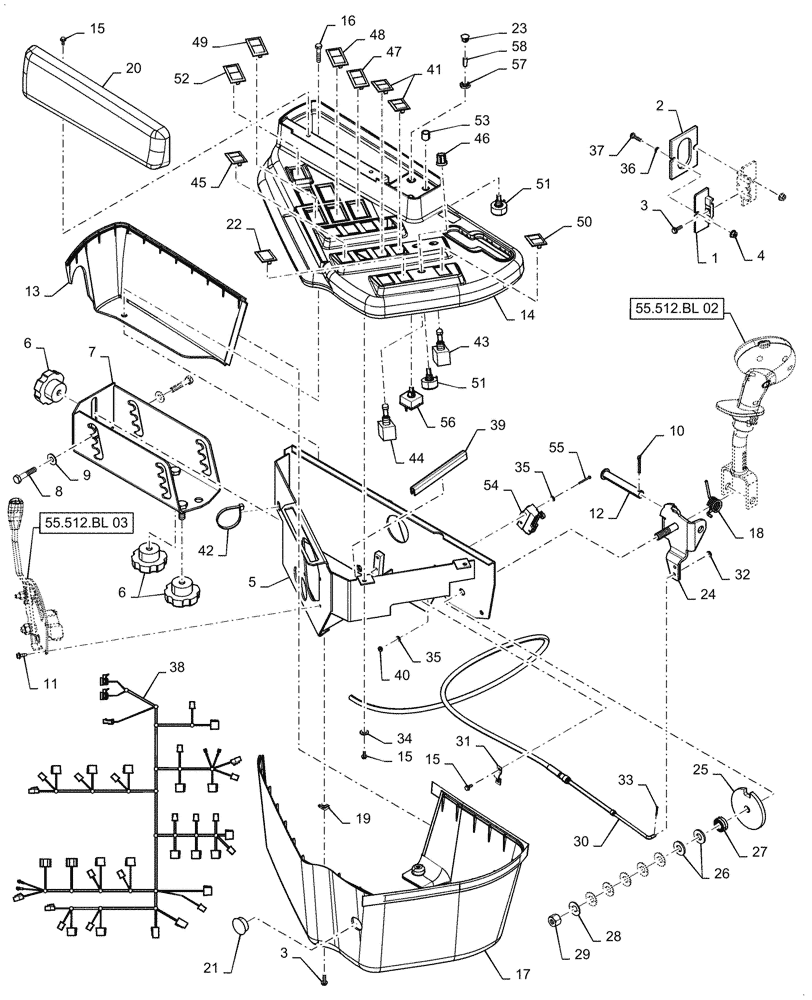

Запчасти Case IH 5088 (55.512.BL[01]) - CONTROL CONSOLE, RH (55) - ELECTRICAL SYSTEMS

1

119314A1

CLAMP

Bulkhead

2шт.

2

119328A1

GASKET,5mm Thk

Bulkhead Clamp

1шт.

3

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

6шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

5

345286A1

FRAME ASSY

Console

1шт.

6

118781A1

KNOB

Console Adjustment

3шт.

7

117107A2

SUPPORT

Lower Slide Assy

1шт.

8

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

10

432-816

COTTER PIN,1/8" x 1"

1шт.

11

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

12

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

13

87613246

COVER

Console Rear Skirt

1шт.

14

87613263

COVER ASSY

RH Console

1шт.

15

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

6шт.

16

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

17

87613245

COVER

Console Front Skirt

1шт.

18

128593A1

SPRING

Prop Handle

1шт.

19

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

20

128970A3

ARMREST

Console

1шт.

21

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

22

245918C1

LENS

Blanking Plug

9шт.

23

282056A1

PLUG

Double "D"

1шт.

24

113318A2

SUPPORT

Propulsion Control Lever

1шт.

25

251090A1

THRUST WASHER

Friction

1шт.

26

496-81010

WASHER

Bearing

2шт.

27

159688R91

THRUST BEARING

Pump Control Actuating Arm

1шт.

28

1994980C1

BELLEVILLE WASHER

Locking

6шт.

29

231-1447

NUT,7/16"-14, GB

1шт.

30

115396A1

CABLE

Propulsion Only

1шт.

31

A75815

CLAMP

Throttle Cable

1шт.

32

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

33

432-48

COTTER PIN,1/16" x 1/2"

1шт.

34

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.

35

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

36

492-11010

LOCK WASHER,#10

2шт.

37

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

38

84182343

WIRE HARNESS

Console

1шт.

39

1327979C1

MOLDING

Edge Guard

1шт.

40

225-14104

NUT,#4-40

2шт.

41

87388152

SWITCH ASSY

Auto Header Height Control

2шт.

42

533959C1

CLAMP

Tie Strap

3шт.

43

245632C2

SWITCH

Separator

1шт.

44

245634C3

SWITCH

Separator

1шт.

45

87691799

SWITCH ASSY

Roading Mode

1шт.

46

118780A1

KNOB

Console Potentiometer

1шт.

47

87682768

SWITCH ASSY

Rocker, Concave

1шт.

48

87682767

SWITCH ASSY

Rocker, Fan

1шт.

49

87682766

SWITCH ASSY

Rocker, Rotor

1шт.

50

87388359

SWITCH ASSY

Auto/Man Reel Speed

1шт.

51

114551A1

POTENTIOMETER,2500 Ohm, 500V

5шт.

52

124098A1

SWITCH

Rocker, Park Brake

1шт.

53

A186263

KNOB

Drop And Hitch Speed

3шт.

54

141655A1

SWITCH

Back-Up Alarm

1шт.

55

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

56

L70872

SWITCH

Wiper

1шт.

57

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

Electrical

1шт.

58

280673A1

KNOB

Accumulator Switch

1шт.

59

87388156

SWITCH

Lower Sieve Adjust

1шт.
