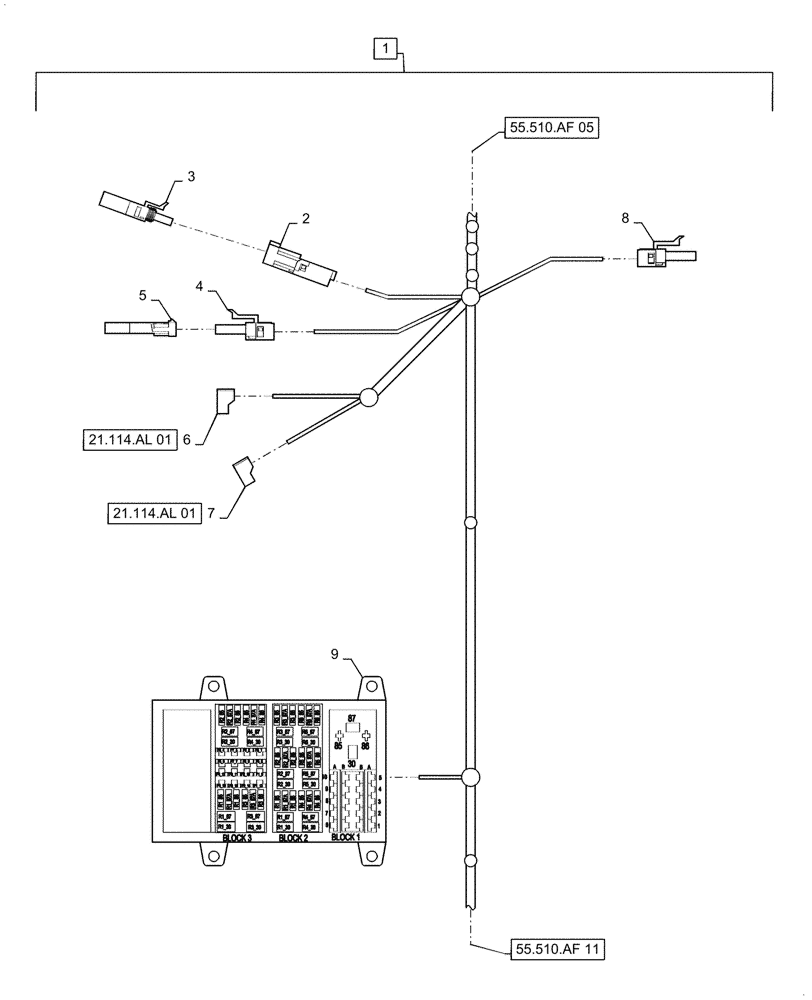

Запчасти Case IH 5088 (55.510.AF[10]) - WIRE HARNESS, CAB MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

84600311

WIRE HARNESS

Cab Main, Incl 2 - 9, Start Serial: Y9G001395

1шт.

1

84131646

WIRE HARNESS

Cab Main, Incl 2 - 9, Serial Range: -Y9G001395

1шт.

2

245485C1

ELEC CONNECTOR,Male, 3 Pin

CXCM Diode, X-075

1шт.

3

A187874

MODULE

Diode, CXCM. X-075A

1шт.

4

245488C1

ELEC CONNECTOR,6 Pin

Remote Sieve Diode, X-074

1шт.

5

127290A1

DIODE

Module, Remote Sieve Diode, X-074A

1шт.

6

87692768

ELEC CONNECTOR

3RD Gear Lockout

1шт.

7

87692768

ELEC CONNECTOR

3RD Gear Lockout

1шт.

8

87693744

WIRE CONNECTOR

Separator Aux B+, X-375

1шт.

9

84147087

FUSE HOLDER

Frame, X-070

1шт.

9

87733595

FUSE HOLDER

Module, X-070

1шт.

9

84526304

MODULE

X-070

1шт.

9

84529039

MODULE

X-070

1шт.
