Запчасти Case IH 5088 (55.302.AV) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS

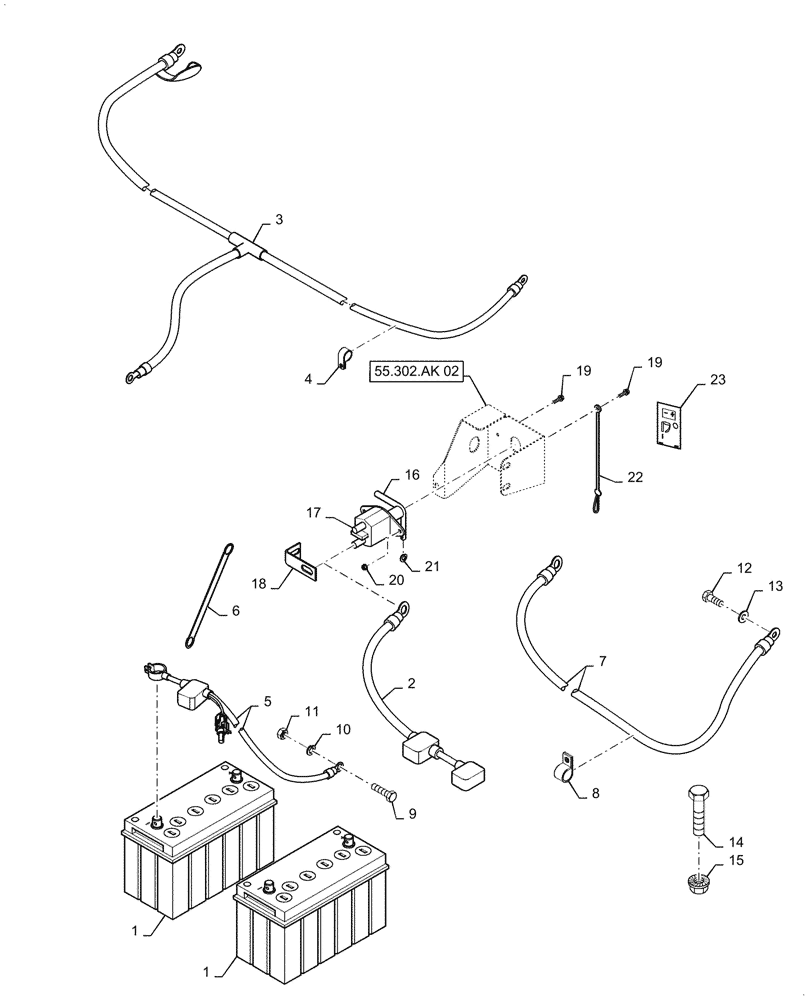

Схема запчастей Case IH 5088 - (55.302.AV) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS
55.302.ak 02
13
2
21
20
4
6
7
19
8
3
17
16
22
23
12
5
10
12
1
19
9
1
18
11
15
14

Артикул

Название

Примечание

Количество

1

BMF31G

BATTERY, DRY

12V

2шт.

2

87726635

CABLE

Battery, Positive

1шт.

3

87726637

CABLE

Battery, Positive

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

5

87398398

NEG BATTERY CABLE

Battery Side

1шт.

6

278033A2

GROUND STRAP

Frame

1шт.

7

128742A2

NEG BATTERY CABLE

Engine

1шт.

8

291207C1

CLAMP

Negative Cable

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

128289A1

BOLT,5/16" - 18 x 2 3/16"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

84004375

BATTERY CUT-OUT

Battery Disconnect

1шт.

17

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

18

87538385

BAR

Jump

1шт.

19

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

20

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

21

87026295

LOCK WASHER,M20 x 24.6mm OD x 2.8mm Thk

1шт.

22

409114A1

CABLE

Safety

1шт.

23

87745531

DECAL

Battery Switch

1шт.

Выбрано товаров: 23
