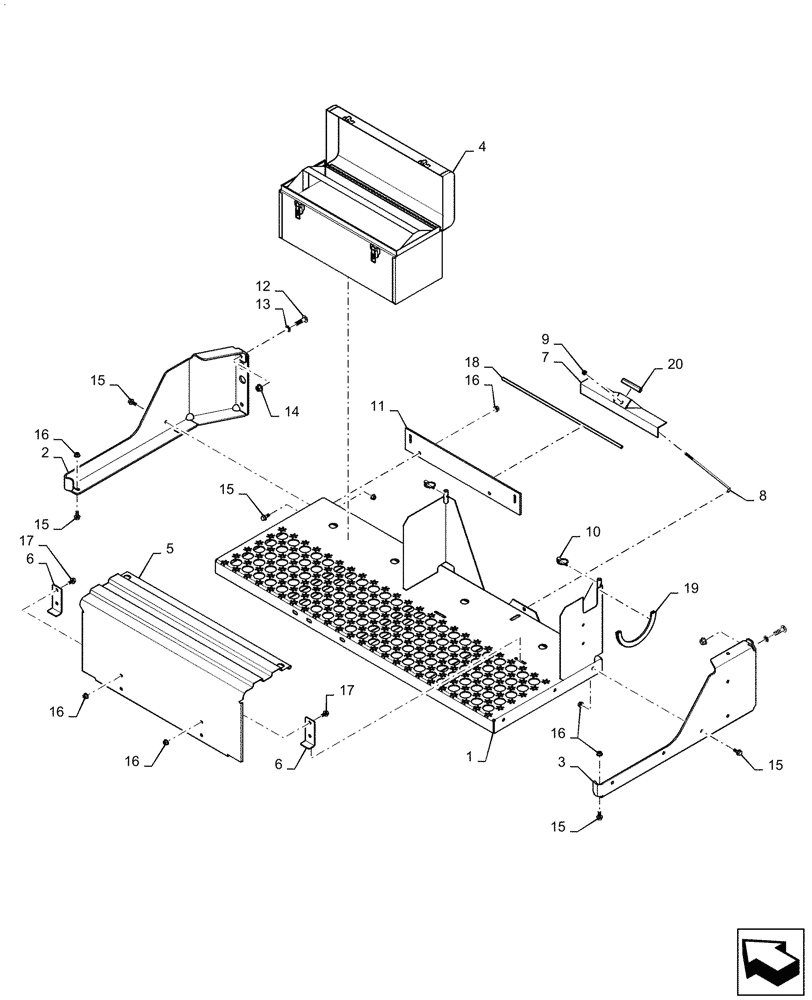

Запчасти Case IH 5088 (55.302.AK[01]) - BATTERY BOX SUPPORT (55) - ELECTRICAL SYSTEMS

1

87726742

BRACKET

Battery Box Platform Support

1шт.

2

84161638

BRACKET

Battery Platform, Front

1шт.

3

84161640

BRACKET

Battery Platform, Rear

1шт.

4

87613832

TOOL BOX

Dark Gray

1шт.

5

87613823

COVER ASSY

Battery Box

1шт.

6

87608663

SECURING STRAP

Battery Box Cover

2шт.

7

84207413

CLAMP

Battery Hold Down

1шт.

8

A147915

BOLT

Battery Hold Down

1шт.

9

425-104

NUT,1/4"-20, Cl 5

1шт.

10

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

11

87608675

PLATE ASSY.

Battery and Tool Box

1шт.

12

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

4шт.

13

87698854

NUT,M10

4шт.

14

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

14шт.

17

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

18

397115A2

TUBE,7.94mm OD x 520mm OAL

Tool Box Retainer

1шт.

19

135370A1

PROTECTION STRIP

Trim

1шт.

20

291186

PROTECTION STRIP,9.9mm W

Edge Channel

1шт.
