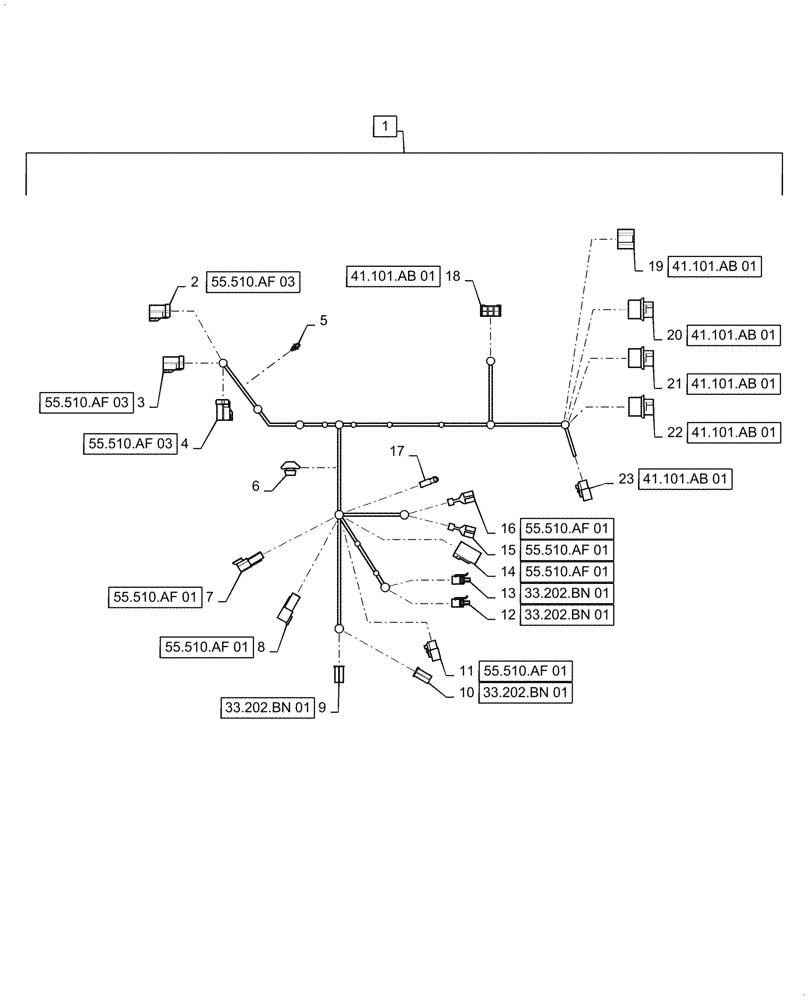

Запчасти Case IH 5088 (55.047.AB) - WIRE HARNESS, STEERING COLUMN (55) - ELECTRICAL SYSTEMS

1

84131653

WIRE HARNESS

Steering Column, Incl 2 - 23

1шт.

2

87382911

WIRE CONNECTOR,Male, 3 Cavities

Cab, X-304

1шт.

3

87382928

WIRE CONNECTOR,Female, 14 Cavities

Cab Harness, X-067

1шт.

3

84395356

TERMINAL,Female, 2.8mm, 18-20

Cab Harness, X-067

7шт.

3

84395358

TERMINAL

Cab Harness, X-067

7шт.

4

87382926

WIRE CONNECTOR,Female, 14 Cavities

Cab Harness, X-068

1шт.

4

84395356

TERMINAL,Female, 2.8mm, 18-20

Cab Harness, X-068

14шт.

5

84516139

CABLE TIE

Fir Tree

1шт.

6

122715A1

GROMMET

Bulkhead

1шт.

7

84146312

ELEC CONNECTOR

Platform Harness, X-131

1шт.

7

225297C1

ELEC CONNECTOR

Wedge, Platform Harness, X-131

1шт.

8

87694110

HYD CONNECTOR

Elec Connector, Platform Harness, X-132

1шт.

8

225328C1

ELEC CONNECTOR,, 4 Pin

Wedge, Platform Harness, X-132

1шт.

9

87697524

WIRE CONNECTOR

Emergency Brake Switch Left Pedal, X-133

1шт.

10

87697524

WIRE CONNECTOR

Emergency Brake Switch Right Pedal, X-134

1шт.

11

84074635

CONTACT HOUSING,Female, 3 Pole

Turn Sense, X-142

1шт.

11

225296C1

ELEC CONNECTOR

Wedge, Turn Sense, X-142

1шт.

12

194788A1

CONNECTOR, 2-POLE

Brake Light Switch, X-135

1шт.

13

194788A1

CONNECTOR, 2-POLE

Brake Light Switch, X-136

1шт.

14

87696073

PLUG

Elec Connector, Turn Signal, X-130

1шт.

15

197424H1

CONNECTION,ELECTRIC

Horn

1шт.

16

197424H1

CONNECTION,ELECTRIC

Horn

1шт.

17

84474041

TERMINAL

Ground

1шт.

18

87737388

WIRE CONNECTOR

Turn Signal Switch, X-137

1шт.

19

225253C1

CONNECTOR, ELEC

Ignition Accessory Start, X-138

1шт.

20

87702883

ELEC CONNECTOR

RH Indicator, X-139

1шт.

21

87702883

ELEC CONNECTOR

Headlights High Beam Indicator, X-140

1шт.

22

87702883

ELEC CONNECTOR

LH Indicator, X-141

1шт.

23

87428139

ELEC CONNECTOR

Steering Column, X-380

1шт.
